Bromine is a highly valuable chemical element widely used in pharmaceuticals, flame retardants, agrochemicals, and oil drilling fluids. The extraction of bromine requires specialized equipment to ensure efficiency, safety, and environmental compliance. The φ4 M Bromine Extraction Equipment is a state-of-the-art system designed for large-scale bromine production, offering advanced features for optimal performance. This article provides a comprehensive overview of its design, working principle, advantages, and applications.

---

1. Overview of Bromine Extraction
Bromine is primarily extracted from brine wells or seawater through a process called blowing-out, where chlorine gas is introduced to oxidize bromide ions (Br⁻) into bromine (Br₂). The φ4 M Bromine Extraction Equipment is engineered to handle this process efficiently, ensuring high yield and minimal waste.

Key steps in bromine extraction include:
- Pre-treatment of brine (removal of impurities)
- Oxidation with chlorine (converting Br⁻ to Br₂)
- Stripping (separating bromine vapor using air or steam)
- Condensation (cooling bromine vapor into liquid form)
- Purification (removing residual contaminants)

The φ4 M system optimizes these steps with advanced automation and corrosion-resistant materials.

---

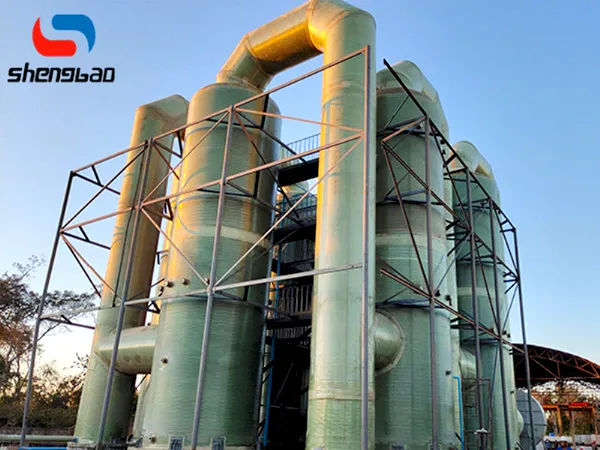

2. Design and Structure of φ4 M Bromine Extraction Equipment
The φ4 M Bromine Extraction Equipment consists of several key components:

2.1 Reaction Column
- Made from titanium or fiberglass-reinforced plastic (FRP) to resist bromine’s corrosive nature.
- Equipped with efficient gas-liquid contact systems to maximize bromine release.

2.2 Stripping Tower
- Uses air or steam to separate bromine vapor from the liquid phase.
- Features high-efficiency packing materials to enhance mass transfer.

2.3 Condensation System
- Multi-stage cooling ensures high-purity liquid bromine collection.
- Corrosion-resistant condensers made from specialized alloys.

2.4 Automation & Control System
- PLC-based control for real-time monitoring of temperature, pressure, and flow rates.
- Safety interlocks to prevent leaks or overpressure conditions.

2.5 Waste Treatment Unit
- Neutralization tanks to treat residual gases and liquids before disposal.
- Scrubbers to remove harmful emissions.

---

3. Working Principle
The φ4 M Bromine Extraction Equipment operates as follows:
1. Brine Feed: Pre-treated brine enters the reaction column.
2. Chlorination: Chlorine gas oxidizes bromide ions into elemental bromine.
3. Stripping: Air/steam strips bromine vapor from the solution.
4. Condensation: Bromine vapor is cooled and liquefied.
5. Purification: Final distillation removes impurities.
6. Storage: Liquid bromine is collected in sealed containers.

The entire process is energy-efficient, with heat recovery systems reducing operational costs.

---

4. Advantages of φ4 M Bromine Extraction Equipment
- High Efficiency: Achieves >95% bromine recovery due to optimized design.
- Corrosion Resistance: Titanium/FRP construction ensures long service life.
- Automation: Reduces manual intervention and human error.
- Environmental Compliance: Advanced waste treatment minimizes pollution.
- Scalability: Suitable for small to large-scale bromine production.

---

5. Applications of Extracted Bromine
Bromine is used in:
- Pharmaceuticals (sedatives, antiseptics)
- Flame Retardants (for electronics, textiles, and construction materials)
- Agriculture (pesticides and soil fumigants)
- Oil & Gas (drilling fluids)
- Water Treatment (disinfectants)

The φ4 M system ensures a stable bromine supply for these industries.

---

6. Maintenance and Safety Considerations
- Regular inspections for corrosion or leaks.
- Emergency shutdown systems in case of malfunctions.
- Operator training on handling hazardous materials.
- Compliance with international safety standards (e.g., OSHA, ISO).

---

7. Conclusion
The φ4 M Bromine Extraction Equipment is a high-performance, reliable, and eco-friendly solution for industrial bromine production. Its advanced design, automation, and corrosion resistance make it a preferred choice for modern chemical plants. By optimizing extraction efficiency and minimizing environmental impact, this system plays a crucial role in meeting global bromine demand.

For industries requiring large-scale bromine production, the φ4 M Bromine Extraction Equipment offers a cost-effective and sustainable solution.
