Bromine, a versatile and highly valuable chemical element, is a critical raw material for a vast array of industries. From flame retardants and pharmaceuticals to agricultural chemicals, oil and gas drilling fluids, and water treatment solutions, its applications are indispensable to modern life. The extraction of bromine from its primary natural sources—subsurface brines and sea water—is a complex industrial process that relies on sophisticated technology. At the heart of large-scale, modern bromine production facilities lies a pivotal piece of apparatus: the φ9.5 m Bromine Extraction Tower. This introduction delves into the design, function, and significance of this specific large-scale equipment.

1. The Fundamental Principles of Bromine Extraction: The Steam Distillation Method

Before understanding the tower itself, one must grasp the basic chemical process it facilitates. The most common method for bromine extraction is the steam distillation process, often based on the reaction chemistry where bromide-rich brine is acidified and oxidized. The key steps are:

  Acidification: The source brine, which contains bromide ions (Br⁻), is first acidified, typically with sulfuric acid (H₂SO₄) or chlorine (Cl₂), which hydrolyzes to form hypochlorous acid. This creates an acidic environment essential for the subsequent reaction.
  Oxidation: Chlorine gas (Cl₂) is introduced into the acidified brine. The chlorine, being a stronger oxidizing agent than bromine, displaces the bromide ions, converting them into elemental bromine (Br₂).
      Chemical Reaction: 2Br⁻ + Cl₂ → Br₂ + 2Cl⁻
  Liberation: This reaction results in elemental bromine molecules being present in the aqueous solution. However, bromine has relatively low solubility in water, and the next crucial step is to separate it from the brine mixture.

This is where the Bromine Extraction Tower comes into play. The tower is designed to efficiently strip the liberated bromine from the brine solution using steam.

2. Anatomy and Function of the φ9.5 m Bromine Extraction Tower

The designation "φ9.5 m" is a technical specification indicating the tower's massive diameter of 9.5 meters. This large diameter is a direct reflection of its intended purpose: processing extremely high volumes of brine to achieve economies of scale in production.

A standard extraction tower is a tall, cylindrical column, often constructed from specialized materials like rubber-lined carbon steel or fiberglass-reinforced plastic (FRP) to resist the highly corrosive nature of hot, acidic brine and wet bromine vapor. Internally, the tower is structured to maximize the contact between the three key phases: the liquid brine, the stripping steam, and the gaseous bromine.

Key internal components include:

  Packing Material: The tower is filled with a structured or random packing material. This packing creates a vast surface area within the column, forcing the liquid brine to spread into thin films over the packing surfaces as it travels downward. This dramatically increases the efficiency of mass transfer.
  Liquid Distributors: At the top of the tower, specialized distributors ensure the incoming brine is spread evenly over the entire cross-sectional area of the packing. Uniform distribution is critical to preventing "channeling," where brine flows unevenly, reducing contact efficiency.
  Steam Inlet: Near the bottom of the tower, live steam is injected. As this steam rises through the column, it heats the brine to near its boiling point.
  The Stripping Process: As the hot brine flows down over the packing, the rising steam provides two functions:
   1.  Heat: The heat reduces the solubility of bromine in the brine.
   2.  Vapor-Liquid Equilibrium: The steam acts as a carrier gas, creating a partial pressure differential that drives the volatile bromine molecules to desorb from the liquid brine phase into the vapor phase.
  Bromine-Steam Vapor Outlet: At the top of the tower, the now bromine-rich vapor mixture (steam + bromine) exits. This vapor is then directed to a series of condensers.
  Depleted Brine Outlet: The stripped brine, now significantly depleted of its bromine content, exits from the bottom of the tower for further processing, neutralization, and disposal or reinjection.

3. The Significance of the 9.5-Meter Diameter

The scale of this equipment is not arbitrary; it is a hallmark of advanced, high-capacity production. A diameter of 9.5 meters signifies a tower designed for a truly monumental throughput.

  High Volumetric Capacity: The cross-sectional area of a column scales with the square of its radius (A = πr²). A 9.5m diameter tower has an internal area of over 70 square meters. This allows for the processing of brine flows that can exceed thousands of cubic meters per hour.
  Production Efficiency: By concentrating such a high volume of production into a single unit, operators benefit from significant efficiencies. It reduces the number of individual units required, simplifying the overall plant layout, minimizing piping and civil engineering costs, and centralizing control and maintenance activities.
  Process Stability: Large-scale equipment often offers more stable process control. The immense volume within the tower can act as a buffer against minor fluctuations in feed flow or composition, leading to a more consistent and reliable bromine output and higher product quality.

4. Material Science and Corrosion Resistance

The operating environment inside the tower is exceptionally aggressive. The combination of high temperature (often 90-100°C), acidic pH, chloride ions, and elemental bromine creates one of the most corrosive industrial environments. The construction materials are therefore chosen for supreme corrosion resistance:

  Tower Shell: The main shell is typically fabricated from thick carbon steel. However, the internal surface is always protected by a lining. This is most commonly a multi-layer acid-brick lining or a thick elastomeric lining (e.g., rubber). These linings form a impervious barrier between the corrosive process fluids and the structural steel.
  Internal Components: The packing, distributors, and support plates are usually made from advanced plastics like polypropylene (PP) or polyvinylidene fluoride (PVDF), or ceramics. These materials offer excellent resistance to both corrosion and thermal degradation.

5. Integration into the Broader Production Circuit

The extraction tower is the core, but not the entirety, of the process. The bromine-laden vapor it produces is routed to shell-and-tube condensers. Here, the mixture is cooled, condensing the bromine and steam into a liquid mixture. Since bromine and water are immiscible, they form two distinct layers in a separating vessel. The dense, lower layer of crude liquid bromine is drawn off for further purification and finishing, while the water layer is often recycled.

The depleted brine exiting the bottom is still hot and acidic. It passes through heat exchangers to pre-heat the incoming feed brine (improving thermal efficiency) and is then neutralized with a base like caustic soda (NaOH) before being responsibly managed.

Conclusion

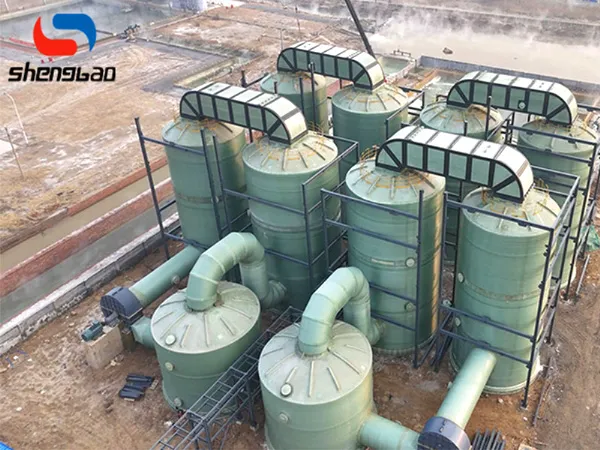

The φ9.5 m Bromine Extraction Equipment represents the pinnacle of scale and engineering in the inorganic chemical industry. It is a masterfully designed apparatus that integrates principles of chemical engineering, thermodynamics, and advanced material science to perform the critical task of separating a vital element from its natural sources. Its massive scale underscores the global demand for bromine and the industry's drive for efficiency and production capacity. By mastering the harsh internal environment through robust design and corrosion-resistant materials, this technology enables the safe, efficient, and large-scale production of bromine, fueling its countless downstream applications that are integral to numerous sectors of the modern world. The operation and maintenance of such a unit require a deep understanding of process engineering and represent a significant achievement in industrial chemical processing.In the bromine industry, the promotion of FRP equipment was the first nationwide case. In 2003, based on the original PVC and cement towers with anti-corrosion measures, we successfully developed China's first FRP bromine tower in collaboration with technical experts from several major domestic bromine production units. It was successfully put into operation in 2004 at Changyi Dahai Bromine Plant.
