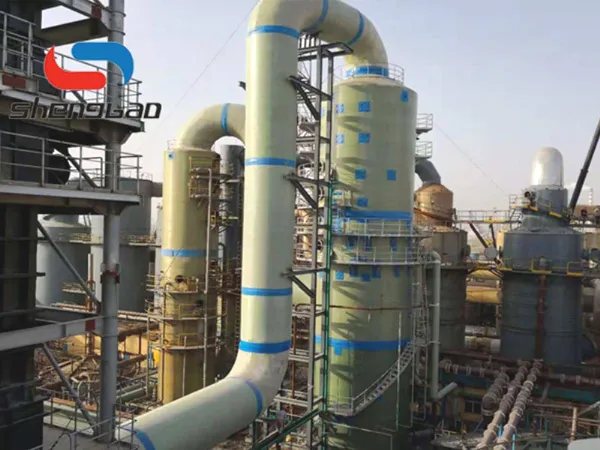

The Fiberglass Desulfurization Tower is a critical component in modern industrial air pollution control systems. Designed to remove sulfur dioxide (SO₂) and other harmful pollutants from exhaust gases, this technology plays a pivotal role in reducing environmental pollution and meeting stringent emission regulations. Fiberglass, as the primary construction material, offers exceptional corrosion resistance, durability, and cost-effectiveness compared to traditional materials like steel or concrete.

This article explores the Fiberglass Desulfurization Tower in detail, covering its design principles, working mechanisms, advantages, applications, and future trends. The discussion spans over 5,000 words, providing a comprehensive understanding of this essential environmental protection equipment.

---

1. Overview of Desulfurization Technology

Desulfurization is the process of removing sulfur compounds, primarily SO₂, from industrial flue gases. SO₂ is a major contributor to acid rain, respiratory diseases, and environmental degradation. Various desulfurization methods exist, including:

- Wet Scrubbing: Uses alkaline slurries (e.g., limestone or lime) to absorb SO₂.
- Dry Scrubbing: Involves injecting dry sorbents into flue gases.
- Semi-Dry Scrubbing: A hybrid approach combining wet and dry methods.

The Fiberglass Desulfurization Tower is predominantly used in wet scrubbing systems due to its superior resistance to corrosive chemicals and moisture.

---

2. Why Fiberglass? Key Advantages

Fiberglass-reinforced plastic (FRP) is the material of choice for desulfurization towers due to the following benefits:

2.1 Corrosion Resistance
- Unlike steel, fiberglass does not rust or degrade when exposed to acidic or alkaline environments.
- Ideal for handling corrosive slurries containing sulfuric acid (H₂SO₄) and chlorides.

2.2 Lightweight and High Strength
- Fiberglass towers are significantly lighter than steel or concrete structures, reducing foundation costs.
- High tensile strength ensures structural integrity under harsh operating conditions.

2.3 Low Maintenance and Longevity
- Resistant to UV radiation, temperature fluctuations, and chemical wear.
- Requires minimal upkeep compared to metal towers prone to corrosion.

2.4 Cost-Effectiveness
- Lower installation and transportation costs due to lightweight design.
- Extended service life reduces long-term replacement expenses.

---

3. Design and Construction of Fiberglass Desulfurization Towers

A typical Fiberglass Desulfurization Tower consists of the following components:

3.1 Tower Structure
- Cylindrical or Rectangular Design: Optimized for gas flow and slurry distribution.
- Multi-Stage Scrubbing Sections: Enhances SO₂ removal efficiency.

3.2 Internal Components
- Spray Nozzles: Distribute the alkaline slurry evenly to maximize gas-liquid contact.
- Packing Material: Increases surface area for chemical reactions (e.g., random or structured packing).
- Mist Eliminators: Prevent slurry droplets from escaping with the cleaned gas.

3.3 Material Selection
- FRP Layers: Customized resin matrices (e.g., vinyl ester or epoxy) for specific chemical resistance.
- Reinforcements: Fiberglass mats and woven rovings for added strength.

3.4 Auxiliary Systems
- Slurry Recirculation Pumps: Ensure continuous flow of the absorbent.
- pH Control Systems: Maintain optimal alkalinity for efficient SO₂ absorption.

---

4. Working Principle

The Fiberglass Desulfurization Tower operates through the following steps:

1. Gas Inlet: Polluted flue gas enters the tower at high velocity.
2. Slurry Spray: Alkaline slurry is sprayed downward, countercurrent to the gas flow.
3. Chemical Reaction: SO₂ reacts with the slurry to form calcium sulfite (CaSO₃) or sulfate (CaSO₄).
4. Purified Gas Exit: Cleaned gas passes through mist eliminators before being released.
5. Byproduct Handling: Solid byproducts (e.g., gypsum) are collected for disposal or reuse.

---

5. Applications Across Industries

Fiberglass Desulfurization Towers are widely used in:

- Power Plants: Coal-fired and gas-fired facilities.
- Chemical Manufacturing: Sulfuric acid plants, refineries.
- Metallurgy: Non-ferrous metal smelting.
- Waste Incineration: Municipal and hazardous waste treatment.

---

6. Challenges and Solutions

Despite its advantages, the technology faces challenges:

6.1 Clogging and Scaling
- Solution: Regular cleaning and anti-scaling additives.

6.2 High-Temperature Resistance
- Solution: Thermal barrier coatings or hybrid material designs.

6.3 Byproduct Disposal
- Solution: Conversion of byproducts into marketable gypsum.

---

7. Future Trends

1. Smart Monitoring: IoT sensors for real-time performance tracking.
2. Advanced Materials: Nanocomposite FRP for enhanced durability.
3. Energy Efficiency: Integration with renewable energy systems.

---

Conclusion

The Fiberglass Desulfurization Tower represents a cornerstone of modern air pollution control, combining efficiency, durability, and environmental benefits. As industries strive for greener operations, advancements in fiberglass technology will further solidify its role in sustainable development.
