Fiber Reinforced Plastic (FRP) horizontal storage tanks are widely used in industries for storing various liquids, including water, chemicals, and wastewater. Their lightweight, corrosion-resistant, and durable properties make them a preferred choice over traditional materials like steel or concrete. This article explores the design, applications, advantages, and maintenance of FRP horizontal storage tanks, providing a detailed overview of their significance in modern industrial operations.

---

1. What is an FRP Horizontal Storage Tank?

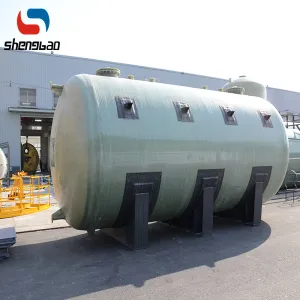

An FRP horizontal storage tank is a cylindrical vessel designed to store liquids in a horizontal orientation. It is constructed using fiberglass-reinforced plastic, which combines glass fibers with a polymer resin matrix (typically polyester, vinyl ester, or epoxy). This composite material ensures high strength, chemical resistance, and longevity.

Key Features:
- Corrosion Resistance: Unlike metal tanks, FRP tanks do not rust or degrade when exposed to corrosive substances.
- Lightweight: Easier to transport and install compared to steel or concrete tanks.
- Customizable: Available in various sizes, capacities, and configurations to meet specific industrial needs.
- Low Maintenance: Requires minimal upkeep due to its non-reactive nature.

---

2. Applications of FRP Horizontal Storage Tanks
FRP horizontal storage tanks are utilized across multiple industries due to their versatility. Some common applications include:

A. Chemical Processing
- Storage of acids, alkalis, solvents, and other aggressive chemicals.
- Used in pharmaceutical, petrochemical, and fertilizer industries.

B. Water and Wastewater Treatment
- Storing potable water, industrial wastewater, or treated effluents.
- Suitable for underground or aboveground installations.

C. Oil and Gas Industry
- Storage of brine, drilling fluids, and other hydrocarbon byproducts.
- Resistant to saltwater and harsh environmental conditions.

D. Food and Beverage Industry
- Used for storing syrups, juices, and other liquid food products.
- Compliant with FDA and food-grade material standards.

E. Pulp and Paper Industry
- Storage of bleaching chemicals, black liquor, and other process liquids.

---

3. Advantages of FRP Horizontal Storage Tanks
FRP tanks offer several benefits over traditional storage solutions:

A. Superior Durability
- Resistant to UV rays, extreme temperatures, and mechanical stress.
- Long service life (often exceeding 20 years with proper maintenance).

B. Cost-Effectiveness
- Lower installation and transportation costs due to lightweight construction.
- Reduced need for protective coatings or linings.

C. Chemical Compatibility
- Can store a wide range of chemicals without degradation.
- Custom resin formulations available for highly corrosive substances.

D. Easy Installation and Relocation
- Modular designs allow for quick assembly and disassembly.
- Suitable for temporary or permanent storage needs.

E. Environmental Benefits
- Non-toxic and recyclable material.
- No leaching or contamination risks.

---

4. Design Considerations for FRP Horizontal Storage Tanks
Proper design ensures optimal performance and safety. Key factors include:

A. Material Selection
- Resin Type: Polyester for general use, vinyl ester for high corrosion resistance, epoxy for extreme conditions.
- Reinforcement: E-glass for standard applications, S-glass for high-strength needs.

B. Structural Integrity
- Wall thickness, rib reinforcements, and support saddles prevent deformation under load.
- Compliance with ASTM D3299 and ASME RTP-1 standards.

C. Capacity and Dimensions
- Sizes range from small (500 gallons) to large (50,000+ gallons).
- Custom fittings (manholes, vents, nozzles) based on operational requirements.

D. Installation Environment
- Aboveground tanks require proper foundation and anchoring.
- Underground tanks need anti-buoyancy measures and leak detection systems.

---

5. Maintenance and Inspection
While FRP tanks are low-maintenance, regular checks ensure longevity:

A. Routine Inspections
- Check for cracks, delamination, or surface damage.
- Inspect fittings, seals, and connections for leaks.

B. Cleaning Procedures
- Use non-abrasive cleaners to avoid surface damage.
- Ensure compatibility with stored chemicals during cleaning.

C. Repair and Rehabilitation
- Minor repairs can be done with FRP patching kits.
- Major damages may require professional relining or replacement.

D. Safety Measures
- Follow OSHA and industry-specific safety guidelines.
- Use proper PPE when handling hazardous contents.

---

6. Comparison with Other Storage Tank Materials

| Feature       | FRP Tanks | Steel Tanks | Concrete Tanks |
|------------------|--------------|----------------|-------------------|
| Corrosion Resistance | Excellent | Poor (requires coatings) | Moderate |
| Weight       | Lightweight  | Heavy           | Very Heavy        |
| Installation Cost | Low | High | Very High |
| Lifespan     | 20+ years    | 10-15 years     | 15-30 years       |
| Maintenance  | Low          | High            | Moderate          |

---

7. Future Trends in FRP Tank Technology
- Smart Monitoring: IoT-enabled sensors for real-time leak detection.
- Eco-Friendly Resins: Bio-based resins to reduce environmental impact.
- Hybrid Designs: Combining FRP with other materials for enhanced performance.

---

Conclusion
FRP horizontal storage tanks are a reliable, cost-effective solution for liquid storage across industries. Their corrosion resistance, lightweight nature, and durability make them superior to traditional materials. By understanding their design, applications, and maintenance requirements, industries can maximize efficiency and safety in storage operations.
