1. Introduction to Gas Scrubbers and the Role of Alkaline Washing

In the vast landscape of industrial air pollution control (APC), the removal of acidic contaminants from exhaust gas streams stands as a critical environmental and operational imperative. Acidic gases such as Hydrogen Chloride (HCl), Sulfur Dioxide (SO₂), Hydrogen Fluoride (HF), and Nitrogen Oxides (NOx) are common byproducts of chemical manufacturing, waste incineration, semiconductor production, metal finishing, and various other industrial processes. If released untreated into the atmosphere, these gases contribute to acid rain, environmental degradation, and pose significant health risks to living organisms.

Gas scrubbing, or absorption, is the fundamental process used to neutralize and remove these acidic pollutants. An alkaline washing tower is a specific type of wet scrubber designed for this exact purpose. It operates on the principle of counter-currently contacting the contaminated gas stream with an alkaline scrubbing solution (or slurry). The acidic components in the gas react with the alkaline agent in the liquid phase, forming neutral salts and water, thereby purifying the gas before its release. The choice of construction material for this tower is paramount, and Polypropylene Homopolymer (PPH) has emerged as a superior material for a wide range of applications.

2. Defining the PPH Alkaline Washing Tower

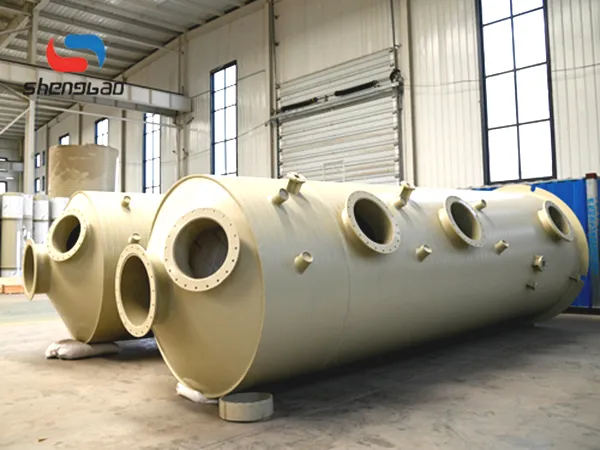

A PPH alkaline washing tower is a packed-bed or spray tower wet scrubber constructed primarily from Polypropylene Homopolymer (PPH). It is engineered to use an alkaline medium—typically a solution of sodium hydroxide (NaOH, caustic soda) or calcium hydroxide (Ca(OH)₂, lime slurry)—to neutralize and absorb acidic gases from industrial exhaust streams.

The "PPH" designation refers to the specific thermoplastic polymer used in its fabrication. Unlike composite materials, homopolymer polypropylene offers a consistent molecular structure, providing a highly predictable set of mechanical and chemical properties. These towers are often custom-designed and fabricated through welding of PPH sheets, allowing for immense flexibility in size and configuration to meet specific process requirements and space constraints.

3. The Core Advantages of PPH as a Construction Material

The widespread adoption of PPH for alkaline washing towers is driven by its exceptional combination of chemical resistance, cost-effectiveness, and durability.

  Outstanding Chemical Corrosion Resistance: This is the single most important advantage. PPH exhibits superb resistance to a very wide range of acids, alkalis, and salts at moderate temperatures. In an alkaline scrubber, the interior is constantly exposed to a corrosive caustic solution. Simultaneously, depending on the process, the inlet gas may contain highly concentrated acidic compounds and moisture, creating an extremely aggressive environment. Metals, even expensive stainless steels or alloys, can suffer from pitting, stress corrosion cracking, and general degradation over time. PPH is inherently inert to these chemical attacks, ensuring a long service life without leakage or failure caused by corrosion.
  Excellent Mechanical Properties and Lightweight Nature: PPH offers a remarkable strength-to-weight ratio. PPH sheets have high rigidity and impact resistance, making the tower structurally sound. Furthermore, PPH is significantly lighter than equivalent metal or FRP (Fiber-Reinforced Plastic) alternatives. This drastically reduces the need for extensive structural support frameworks, simplifies transportation and installation, and lowers overall project costs.
  Superior Thermal Insulation: PPH has a low thermal conductivity. This property helps in maintaining a stable temperature within the scrubbing process, reducing heat loss from the scrubbing liquor, and improving overall energy efficiency. It also makes the external surface of the tower safer to touch compared to metal towers, which can become very hot or cold.
  Smooth Internal Surface and Anti-Fouling特性: The internal walls of PPH towers can be made exceptionally smooth. This low surface energy minimizes the adhesion of scales, precipitates, or sludge that can form during the neutralization process (e.g., gypsum from SO₂ scrubbing). This reduces the frequency of clogging in the packing media and lowers maintenance demands for cleaning.
  Cost-Effectiveness: PPH is a readily available and relatively low-cost engineering plastic. The fabrication process, often involving CNC cutting and hot-gas welding, is efficient and less labor-intensive than welding specialized metals. The combination of low material cost, reduced installation costs, and minimal maintenance requirements results in a very attractive total cost of ownership.

4. Key Components and Working Principle of a PPH Alkaline Washer

A typical packed-bed PPH alkaline washing tower consists of several key components:

1.  Tower Shell: The main body, constructed from thick PPH sheets, forms the containment vessel for the entire scrubbing process.
2.  Packing Media: This is the heart of the mass transfer process. Towers are filled with inert packing elements (often made from PP or PVC) designed to create a vast surface area for gas-liquid contact. Common types include random dump packings (like Pall rings) or structured packings.
3.  Spray Nozzle System: Alkaline scrubbing solution is distributed over the top of the packing bed through a network of spray nozzles, ensuring even irrigation and complete wetting of the packing material.
4.  Demister/Mist Eliminator: Located at the top of the tower, this critical component (often made of PP) removes entrained liquid droplets from the now-cleaned gas stream before it exits to the exhaust stack. This prevents valuable chemicals from being lost and stops visible plumes.
5.  Sump and Recirculation System: The used scrubbing solution collects at the bottom of the tower in a sump. It is then pumped through a recirculation loop, often passing through a heat exchanger to control temperature, before being sprayed back into the tower. Acid concentration and pH in the sump are continuously monitored, and a blow-down stream is purged while fresh alkaline solution is added to maintain scrubbing efficiency.

Working Principle:
The process is a continuous counter-flow operation. The acidic gas stream enters the tower near the bottom. As it rises upward, it is forced through the packed bed, which is being continuously wetted by the downward flowing alkaline solution. Intimate contact between the gas and liquid phases allows the acidic pollutants to diffuse into the liquid film and undergo a neutralization reaction (e.g., HCl + NaOH → NaCl + H₂O). The cleansed gas passes through the demister to remove moisture and exits the top of the tower. The spent solution, now containing dissolved salts, is bled off from the sump for wastewater treatment.

5. Design Considerations and Applications

When designing a PPH alkaline washing system, engineers must carefully consider:
  Gas Flow Rate (ACFM/Nm³/h): Determines the tower diameter.
  Inlet Concentration of Pollutants: Dictates the required packing height and liquid-to-gas ratio (L/G) to achieve the desired removal efficiency (>99% is common).
  Alkali Selection: Caustic soda offers high reactivity and ease of handling, while lime slurry is cheaper but can lead to more scaling.
  Temperature Management: The neutralization reactions are exothermic (heat-producing). In some cases, an external heat exchanger is necessary to cool the recirculating liquor to protect the PPH material (whose maximum continuous service temperature is typically around 80-100°C) and optimize absorption efficiency.

Applications of PPH alkaline washing towers are diverse and include:
  Chemical and Pharmaceutical Industries
  Waste Incineration and Energy-from-Waste Plants
  Metal Surface Treatment and Pickling Lines
  Semiconductor and Electronics Manufacturing
  Food Processing and Rendering Plants
  Any process emitting HCl, SO₂, HF, Cl₂, or H₂S.

6. Conclusion

The PPH alkaline washing tower represents a perfect marriage of effective pollution control technology and advanced material science. Its exceptional corrosion resistance, lightweight properties, and overall cost-effectiveness make it an ideal solution for a vast array of industries tasked with mitigating acidic gas emissions. By providing a durable and reliable method for neutralizing hazardous pollutants, PPH scrubbers play an indispensable role in helping industries meet stringent environmental regulations, protect surrounding ecosystems, and promote sustainable operational practices. Their customizable nature and robust performance ensure they will remain a cornerstone of air pollution control strategies for years to come.
