In the vast landscape of industrial processing, the selection of equipment materials is not merely a choice but a critical determinant of efficiency, safety, and economic viability. Among the various materials employed for constructing chemical storage and processing vessels, Polypropylene Homopolymer (PPH) has emerged as a premier choice for demanding applications. A PPH mixing tank represents the synergy of advanced polymer technology and precise engineering, offering a robust solution for agitation, blending, reaction, and storage processes across numerous industries. This article delves deep into the world of PPH mixing tanks, exploring their material properties, manufacturing processes, design features, applications, and advantages over traditional materials.

1. Understanding the Core Material: Polypropylene Homopolymer (PPH)

The exceptional performance of a PPH mixing tank is fundamentally derived from the properties of its constituent material.

  Chemical Resistance: This is the most significant advantage of PPH. It exhibits outstanding resistance to a wide range of corrosive chemicals, including strong acids, alkalis, and saline solutions. This resistance far surpasses that of metals like stainless steel (which can be susceptible to chlorides) and many other plastics when faced with specific corrosive agents. This property effectively eliminates contamination, rust, and the costly product loss associated with corrosion.
  High-Temperature Performance: Standard polypropylene has a limited thermal operating range. However, PPH is a high-performance variant with a higher molecular weight and crystallinity. Tanks constructed from PPH can typically handle continuous operating temperatures up to 90-100°C (194-212°F), and even higher for short-term exposure, making them suitable for many heated processes.
  Mechanical Strength and Durability: PPH possesses excellent mechanical properties, including high tensile strength and stiffness. This results in tanks that are structurally sound, resistant to impact, and capable of withstanding the mechanical stresses of internal agitation and external environmental factors.
  Purity and Hygiene: PPH is an inert material that does not leach additives or colorants. Its smooth, non-porous surface prevents bacterial growth and makes it extremely easy to clean and sterilize. This makes it ideal for industries with strict hygiene standards, such as pharmaceuticals, food and beverage, and ultrapure chemical manufacturing.
  Lightweight Nature: Compared to equivalent glass-lined steel or stainless steel tanks, PPH tanks are remarkably lightweight. This simplifies transportation, handling, and installation, often requiring less structural support.

2. The Manufacturing Process: PP Helical Extrusion Welding

PPH tanks are not manufactured using traditional injection molding due to their size. Instead, they are built using a sophisticated technique known as Polypropylene Helical (Spiral) Extrusion Welding.

This process involves:
1.  Sheet Production: PPH raw material is first extruded into large, thick sheets of consistent quality and thickness.
2.  CNC Cutting: These sheets are precision-cut using Computer Numerical Control (CNC) machines to form the specific components of the tank: the cylindrical shell, the conical or dished bottom, and the top head.
3.  Roll Forming: The cut sheets are rolled into the required cylindrical shapes.
4.  Helical Welding: A specialized automated welding machine uses a extruder head to produce a continuous ribbon of molten PPH. This ribbon is then spirally wound and fused under pressure onto the seams where two PPH components meet. This creates a homogenous, monolithic weld that is as strong as, or even stronger than, the parent material itself. This seamless construction is crucial for achieving structural integrity and leak-proof performance.

3. Key Design Features of a PPH Mixing Tank

A standard PPH mixing tank is an integrated system comprising several key components:

  Tank Shell and Bottom: The main body, constructed from thick PPH sheets, often with external structural reinforcements (like steel frames) for very large volumes or top-mounted agitators.
  Agitation System: The heart of the mixing process. This includes:
      Agitator: The impeller itself, which can be of various types (turbine, propeller, anchor, etc.) selected based on the fluid viscosity and mixing purpose (blending, suspending, gas dispersing).
      Shaft: A sturdy shaft, often made of PPH-clad steel or solid PPH, which transmits torque from the drive to the agitator.
      Drive Assembly: An electric motor, typically mounted on a top-mounted gearbox, which provides the necessary power and RPM for the application.
  Top Head and Manway: A securely bolted or welded top cover featuring a large manway for safe personnel entry, inspection, and cleaning.
  Ports and Connections: Numerous nozzles and ports are integrated into the design for filling, emptying, sampling, venting, and installing sensors (e.g., for temperature, pH, or level).
  Heating/Cooling Jacket (Optional): For processes requiring precise temperature control, an external jacket can be added. This jacket circulates a thermal transfer fluid (like steam or chilled water) around the tank to heat or cool its contents. These jackets are also constructed from PPH and welded to the main tank shell.

4. Applications Across Industries

The unique combination of properties makes PPH mixing tanks indispensable in numerous sectors:

  Chemical Processing: The primary application area. Used for producing acids, alkalis, dyes, pigments, plating solutions, and specialty chemicals where corrosion resistance is paramount.
  Water and Wastewater Treatment: For mixing flocculants, coagulants, lime slurry, and other treatment chemicals. Their corrosion resistance ensures a long service life in this harsh environment.
  Pharmaceutical Industry: Ideal for synthesizing intermediate compounds and active pharmaceutical ingredients (APIs) where purity and resistance to aggressive solvents are critical.
  Food and Beverage Industry: Used for processing ingredients, additives, and products like vinegar or dairy-based acids where hygiene and non-contamination are non-negotiable.
  Electronics Industry: Essential in the manufacturing of semiconductors and printed circuit boards (PCBs) for preparing and storing high-purity etchants and solvents.

5. Advantages Over Alternative Materials

  vs. Stainless Steel (SS316/304): PPH is superior in handling hydrochloric acid, sulfuric acid, and other halides that cause pitting and stress corrosion cracking in stainless steel. It is also significantly less expensive both in initial investment and maintenance.
  vs. Fiberglass Reinforced Plastic (FRP): While FRP is also corrosion-resistant, PPH offers a more consistent and predictable material property throughout. PPH is not susceptible to delamination and is generally easier to repair.
  vs. PVC: PPH offers a much higher operating temperature range and better overall mechanical strength and impact resistance.

Conclusion

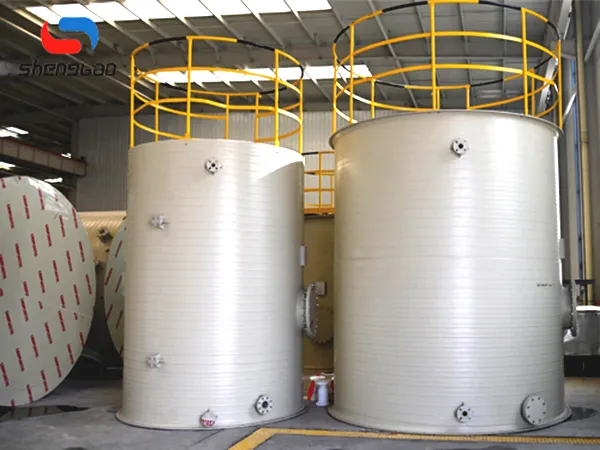

The PPH mixing tank is far more than a simple container; it is a precision-engineered system designed to tackle the most challenging mixing and reaction processes. Its construction from Polypropylene Homopolymer, via the advanced helical welding technique, results in a vessel that offers unparalleled corrosion resistance, structural integrity, operational purity, and long-term cost-effectiveness. By choosing a PPH mixing tank, engineers and plant managers select a reliable, durable, and hygienic solution that safeguards product quality, ensures operational safety, and maximizes return on investment across a diverse spectrum of modern industries. Its role as a cornerstone of corrosive fluid handling is firmly established and continues to grow as technology advances.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.

These tanks feature excellent thermal stability, superior chemical resistance, non-toxicity, energy efficiency, environmental friendliness, and recyclability. Their service life is 3-4 times longer than that of conventional storage tanks.

They are widely used in industries such as new energy, chemical processing, biopharmaceuticals, metal smelting, water treatment, and food production.
