Introduction to Mass Transfer and Separation Processes

In the vast landscape of chemical engineering, petrochemical refining, environmental protection, and many other industries, the separation of mixtures into their individual components is a fundamental and critical operation. This process, central to producing everything from purified water and pharmaceuticals to fuels and plastics, often relies on a unit operation known as mass transfer. Among the most efficient and widely used apparatuses for facilitating mass transfer between gases and liquids is the packed tower or packed column. This article provides a detailed exploration of packed columns, delving into their design, operating principles, types of packing, applications, advantages, and limitations, serving as a foundational write about Packed tower/column five-thousand-word introduction.

1. Fundamental Principles of Operation

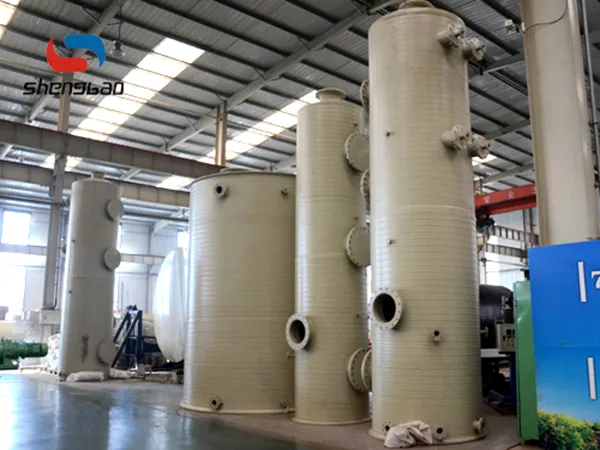

A packed column is a vertical, cylindrical vessel filled with a specialized material known as "packing." The core purpose of this design is to create a vast interfacial surface area where a gas and a liquid can come into intimate contact without being vigorously dispersed into one another, as in a mixer.

The process is typically counter-current: the liquid stream is introduced at the top of the column through a liquid distributor and flows downward over the surface of the packing. Simultaneously, the gas stream enters at the bottom of the column and flows upward through the void spaces in the packed bed. As the two phases move past each other, components within each stream can transfer from one phase to the other based on principles of diffusion, concentration gradients, and solubility.

The driving force for this mass transfer is the difference between the actual concentration of a component in a phase and its equilibrium concentration at the interface. For example, in a gas absorption process where a soluble component (solute) is being removed from a gas stream by a solvent liquid, the solute will diffuse from the gas phase (where its concentration is high) into the liquid phase (where its concentration is low) until equilibrium is approached. The extensive surface area provided by the packing maximizes the contact area, thereby maximizing the rate of mass transfer.

2. The Heart of the Column: Types of Packing

The packing material is arguably the most critical component, as its design directly impacts the efficiency, capacity, and pressure drop of the column. Packing is broadly categorized into two main types: random packing and structured packing.

a) Random Packing:
These are discrete units of packing material that are randomly dumped into the column. They are designed to promote good liquid distribution and high surface area. Common materials include ceramic, metal, and plastic, chosen based on the corrosiveness, temperature, and pressure of the system.
  Raschig Rings: One of the earliest forms, these are simple hollow cylinders. While inexpensive, they offer relatively low efficiency and high pressure drop compared to modern designs.
  Pall Rings: An improvement on Raschig rings, these feature finger-like protrusions from the cylinder wall and often include internal struts. This design increases surface area, improves liquid distribution, and significantly lowers pressure drop.
  Berl Saddles and Intalox Saddles: Saddle-shaped packings designed to create a continuous liquid film and offer good mechanical strength. They provide excellent surface area and lower pressure drop than rings.
  Modern High-Performance Random Packing: This includes designs like the Super Intalox Saddle, Nutter Ring, and others. These are highly engineered shapes with perforations, channels, and complex geometries to maximize efficiency (high mass transfer per unit height), minimize pressure drop, and have high capacity (high flow rates before flooding).

b) Structured Packing:
This type consists of pre-assembled, ordered modules, typically made from corrugated metal or plastic sheets. The sheets are arranged to form a series of open channels that guide the flow of gas and liquid in a highly controlled, predictable manner.
  Advantages: Structured packing offers very low pressure drop, extremely high efficiency (requiring shorter column heights for the same separation), and very high capacity. The uniform flow paths minimize maldistribution, a common problem in large-diameter random packed beds.
  Disadvantages: The primary drawback is significantly higher cost per unit volume compared to random packing. It is also more susceptible to fouling from solids or viscous liquids, as the narrow channels can easily become clogged.

3. Key Components and Internal Hardware

Beyond the packing itself, a well-designed packed column requires several crucial internal components to function correctly:
  Liquid Distributor: Positioned at the top of the packed bed, this is perhaps the most important internal. Its job is to evenly distribute the liquid feed over the entire cross-sectional area of the packing. Poor distribution leads to "channeling," where liquid and gas flow through preferred paths, drastically reducing contact efficiency.
  Packing Support Plate: A strong, open grid located at the bottom of the column designed to support the weight of the entire packed bed while allowing gas and liquid to pass through with minimal restriction.
  Liquid Redistributors: In very tall columns, liquid tends to flow toward the column walls, causing maldistribution. Redistributors are placed at intervals down the column to collect the liquid and redistribute it evenly over the next bed of packing.
  Hold-Down Plate: A heavy grid or plate placed on top of the random packed bed to prevent it from fluidizing and being lifted by high gas velocities, which could damage the upper distributors and packing.
  Mist Eliminator: Positioned at the top gas outlet, this device (often a mesh pad) captures entrained liquid droplets from the gas stream before it exits the column.

4. Design Considerations and Performance Parameters

Designing a packed column is a complex engineering task that involves balancing multiple, often competing, factors:
  Pressure Drop: The resistance to gas flow caused by the packing. A lower pressure drop is generally desired to reduce energy costs for gas compression. Structured packing typically offers the lowest pressure drop.
  Liquid Holdup: The volume of liquid retained in the packing during operation. This can affect the column's responsiveness to changes in flow rates and the time available for mass transfer.
  Capacity: The maximum flow rates of gas and liquid that the column can handle before a condition called "flooding" occurs. Flooding is the point where the liquid completely fills the void spaces, the gas can no longer flow upward, and the column becomes inoperable. It is the primary hydraulic limitation.
  Mass Transfer Efficiency: Measured as the Height Equivalent to a Theoretical Plate (HETP) for distillation or the Height of a Transfer Unit (HTU) for absorption/stripping. A lower HETP or HTU means a shorter column height is required to achieve the desired separation.

5. Applications Across Industries

The versatility of packed columns makes them indispensable in numerous sectors:
  Gas Absorption: Removing contaminants like CO₂, H₂S, or SO₂ from flue gases using amine solvents; scrubbing ammonia from air with water.
  Distillation: Separating liquid mixtures based on boiling points, widely used in petroleum refining and chemical production. Both random and structured packing are common.
  Stripping: Removing volatile components from a liquid stream by contacting it with a gas (often steam or air). Examples include removing VOCs from wastewater or oxygen from boiler feedwater.
  Liquid-Liquid Extraction: While less common, specialized packed columns can be used for contacting two immiscible liquids.
  Humidification and Dehumidification: Controlling the water vapor content of air for climate control or industrial processes.
  Direct-Contact Heat Transfer: Using the column as a cooler or heater where a gas and liquid exchange heat directly.

6. Advantages and Disadvantages

Advantages:
  Lower pressure drop compared to traditional tray columns, leading to energy savings.
  Higher efficiency for certain services, especially in vacuum distillation where low pressure drop is critical.
  Greater suitability for corrosive services, as ceramic or plastic packings can be used.
  Lower liquid holdup, which is beneficial when processing expensive or hazardous materials.
  Often more economical for smaller diameter columns.

Disadvantages:
  Susceptibility to fouling and clogging from solids or polymerizing fluids.
  Liquid distribution is critical and can be challenging, especially in large diameters.
  Generally less effective than trays for processes with large heat effects that require internal cooling.
  Random packed beds can suffer from maldistribution, and structured packing has a high initial cost.

Conclusion

The packed tower remains a cornerstone of separation technology. Its elegant, efficient design, centered on maximizing interfacial contact through a bed of engineered packing, solves some of the most challenging mass transfer problems in industry. From cleaning the air we breathe to refining the fuels that power our world, its applications are as diverse as they are vital. The ongoing development of new packing materials and geometries continues to push the boundaries of its capacity and efficiency, ensuring that the packed column will remain an essential tool for engineers for decades to come. This overview provides a solid foundation for anyone looking to write about Packed tower/column five-thousand-word introduction, covering the key principles that define its operation and utility.
