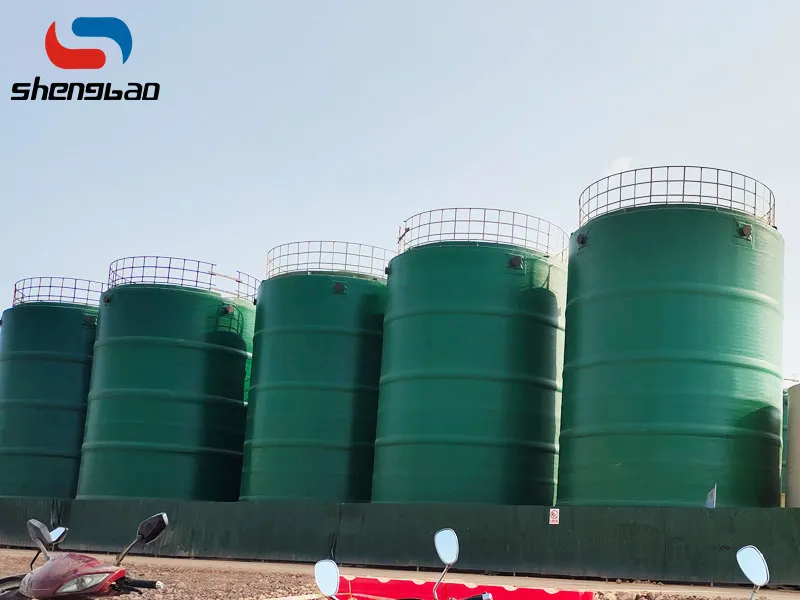

Glass Fiber Reinforced Plastic (GFRP), also known as fiberglass, is a composite material widely used in industrial applications due to its exceptional corrosion resistance, high strength-to-weight ratio, and durability. One of its critical applications is in the construction of storage tanks for aggressive chemicals, such as dilute sulfuric acid. This article explores the design considerations, manufacturing processes, applications, and advantages of GFRP dilute sulfuric acid tanks, providing a comprehensive overview of this essential industrial equipment.

1. Material Properties of GFRP
GFRP is composed of glass fibers embedded in a polymer matrix, typically epoxy, vinyl ester, or polyester resin. The material's key properties include:
- Corrosion Resistance: GFRP is highly resistant to dilute sulfuric acid (typically at concentrations below 70%), making it ideal for chemical storage.
- Lightweight: Compared to steel or concrete, GFRP tanks are significantly lighter, reducing transportation and installation costs.
- High Strength: The glass fibers provide tensile strength, while the resin matrix ensures structural integrity.
- Thermal Insulation: GFRP has low thermal conductivity, reducing the need for additional insulation in temperature-sensitive applications.
- Long Service Life: Properly designed GFRP tanks can last over 20 years with minimal maintenance.

2. Design Considerations for GFRP Dilute Sulfuric Acid Tanks
Designing a GFRP tank for dilute sulfuric acid storage requires careful consideration of several factors:

2.1 Chemical Compatibility
- The resin matrix must be selected based on the concentration and temperature of the sulfuric acid. Vinyl ester resins are commonly used due to their superior chemical resistance.
- The inner liner, which contacts the acid, should be reinforced with a corrosion-resistant barrier layer.

2.2 Structural Integrity
- The tank must withstand hydrostatic pressure, wind loads, and potential seismic forces.
- Reinforcement ribs or additional layers may be added to high-stress areas.

2.3 Temperature and Pressure Conditions
- GFRP tanks can typically handle temperatures up to 80°C (176°F) for dilute sulfuric acid.
- Pressure ratings depend on the tank design (e.g., atmospheric, low-pressure, or pressurized tanks).

2.4 Safety and Compliance
- Tanks must meet industry standards such as ASTM D3299 (fiberglass-reinforced plastic tanks) and ASME RTP-1.
- Leak detection systems and secondary containment may be required for environmental safety.

3. Manufacturing Process of GFRP Tanks
GFRP tanks are typically manufactured using one of the following methods:

3.1 Filament Winding
- Continuous glass fibers are wound around a rotating mandrel in a precise pattern to create a seamless, high-strength structure.
- This method is ideal for cylindrical tanks and allows for customization of wall thickness.

3.2 Hand Lay-Up
- Layers of fiberglass mat and resin are manually applied to a mold, making it suitable for complex shapes or custom designs.
- Quality control is critical to avoid voids or weak spots.

3.3 Spray-Up
- Chopped fibers and resin are sprayed onto a mold, providing a faster but less precise manufacturing process.

4. Applications of GFRP Dilute Sulfuric Acid Tanks
GFRP tanks are used in various industries, including:
- Wastewater Treatment: Storing sulfuric acid for pH adjustment.
- Mining and Metallurgy: Acid leaching processes.
- Chemical Manufacturing: Intermediate storage and transport.
- Power Plants: Flue gas desulfurization systems.

5. Advantages Over Traditional Materials
Compared to steel, concrete, or polyethylene tanks, GFRP offers:
- Superior Corrosion Resistance: No rust or degradation from sulfuric acid exposure.
- Lower Maintenance Costs: No need for protective coatings or frequent repairs.
- Faster Installation: Lightweight design simplifies handling.
- Customizability: Can be tailored to specific chemical and environmental conditions.

6. Challenges and Limitations
- UV Degradation: Prolonged sunlight exposure can weaken GFRP; protective coatings or shelters may be required.
- Higher Initial Cost: Though more cost-effective long-term, GFRP tanks have a higher upfront cost than some alternatives.
- Temperature Limitations: Not suitable for highly concentrated sulfuric acid or extreme temperatures.

7. Maintenance and Inspection
Regular inspections should include:
- Visual checks for cracks, blisters, or discoloration.
- Ultrasonic testing to detect hidden flaws.
- Ensuring fittings, seals, and supports remain intact.

Conclusion
GFRP dilute sulfuric acid tanks provide an optimal solution for industries requiring safe, durable, and corrosion-resistant chemical storage. Their lightweight, customizable design and long service life make them a preferred choice over traditional materials. By adhering to proper design standards and maintenance practices, GFRP tanks ensure reliable performance in demanding environments.
