Introduction

In the intricate world of hydronic heating and cooling systems, achieving peak efficiency, stability, and equipment longevity is paramount. While boilers, chillers, and heat pumps often take center stage, there is a critical component that acts as the unsung hero of system harmony: the buffer tank. When constructed from advanced materials like Polypropylene (PP), the buffer tank transforms from a simple vessel into a highly engineered component that significantly elevates system performance. This in-depth exploration delves into the purpose, design, advantages, and applications of PP buffer tanks, providing a thorough understanding of their indispensable role.

1. The Fundamental Role of a Buffer Tank

At its core, a buffer tank is a storage vessel used in closed-loop hydronic systems. Its primary function is to "decouple" the operation of the heat source (e.g., a boiler or heat pump) from the heat demand (e.g., radiators, underfloor heating, or air handlers). This decoupling is achieved by adding significant thermal mass (in the form of stored water) to the system.

Imagine a scenario with a modern, high-efficiency modulating condensing boiler or an air-source heat pump. These units are designed to run in steady, prolonged cycles for maximum efficiency and minimal wear. However, the building's demand for heat can be small and variable—a single zone calling for heat, a few thermostatic radiator valves opening slightly. Without a buffer tank, the boiler or heat pump would be forced to short-cycle: firing up for a few minutes to meet the small immediate demand, then shutting down, only to restart again shortly after. This is highly detrimental for several reasons:

  Reduced Efficiency: Most heating equipment is least efficient during startup. Short-cycling forces numerous inefficient startups, drastically lowering seasonal efficiency.
  Increased Wear and Tear: The thermal stress on heat exchangers, the electrical stress on compressors and motors, and mechanical wear from repeated ignition all contribute to a shortened equipment lifespan.
  Poor System Stability: Temperature fluctuations and inconsistent heating can occur.

The buffer tank sits between the heat source and the distribution system. The heat source charges the tank with heated (or chilled) water. The distribution system then draws from this reservoir. This allows the heat source to run in longer, more efficient cycles, heating a large volume of water in the tank rather than responding instantly to tiny demands. The tank "buffers" the difference between the generation and consumption of thermal energy.

2. Why Polypropylene (PP)? The Material Science Advantage

While traditional buffer tanks are made from steel (often carbon steel with internal glass linings or stainless steel), Polypropylene offers a set of distinct and powerful advantages that make it an superior choice for many applications.

  Exceptional Corrosion Resistance: This is PP's most significant advantage. Unlike steel, which is susceptible to corrosion from oxygen diffusion into the system or from aggressive water chemistries (low pH, chlorides), polypropylene is inherently inert. It is highly resistant to a wide range of chemicals and will not rust, pit, or corrode over the entire lifespan of the system. This eliminates a major failure point and maintenance concern, ensuring the integrity of the stored water and protecting other system components from corrosive debris.
  Lightweight and Easier to Handle: PP tanks are significantly lighter than their steel counterparts of equivalent volume. This simplifies logistics, reduces structural support requirements, and makes installation in tight spaces or on upper floors much more feasible.
  Superior Thermal Insulation Properties: Polypropylene has a lower thermal conductivity than metal. While all buffer tanks require external insulation, the inherent insulating property of the PP material itself reduces standby heat loss compared to a steel tank, contributing to slightly higher overall system efficiency.
  Seamless Construction and Hygiene: High-quality PP buffer tanks are often rotationally molded (rotomolded) or fabricated from PP sheet, creating a seamless, monolithic structure. The absence of welds, which can be potential weak points for stress corrosion cracking in stainless steel, eliminates a primary failure mode. Furthermore, the smooth, non-porous internal surface prevents scale build-up and inhibits bacterial growth like Legionella, making it an excellent choice for potable water and domestic hot water (DHW) applications.
  Reduced Electrolytic Corrosion: In systems with mixed metals (e.g., copper pipes, brass pumps, steel heat exchangers), a steel tank can become a site for galvanic corrosion. As a non-conductive material, PP completely isolates itself from these electrolytic reactions, simplifying system grounding and bonding requirements and preventing this form of degradation.

3. Key Design Features and Considerations for PP Buffer Tanks

A well-designed PP buffer tank incorporates several critical features to optimize its function and integration:

  Internal Heat Exchanger (Optional): Many PP buffer tanks can be fitted with an integrated heat exchanger, often a double-wall plate or coil type. This creates a separation between the primary system water (in the tank) and the secondary circuit. This is crucial for:
      Potable Water Heating: Acting as an indirect water heater for DHW, ensuring no cross-contamination between heating water and drinking water.
      System Isolation: Isolating different pressure or chemistry regimes within a larger system.
  Strategic Porting: Tanks are equipped with multiple, strategically located tappings (inlets and outlets). These allow for optimal temperature stratification. The goal is to have the hottest water at the top (where the load draws from) and the coolest return water at the bottom (where it re-enters to be reheated). Proper port placement is essential for maximizing the effective capacity and efficiency of the tank.
  Insulation: High-density foam insulation (e.g., polyurethane) is typically bonded to the external shell to minimize standby heat loss, maintaining the stored water's temperature for extended periods.
  Expansion Capability: As a closed vessel, the tank must be sized to accommodate system water expansion. This is typically handled by an external expansion vessel, but some integrated designs exist.

4. Sizing and Application Specifics

Sizing a buffer tank is a critical engineering calculation. It is not "one-size-fits-all." Factors include:
  The minimum output of the heat source (especially heat pumps)
  The minimum flow rate requirements of the heat source
  The system's anticipated load profile
  The desired minimum run time for the equipment

Primary Applications include:

  Heat Pump Systems: Essential for air-to-water and ground-source heat pumps to prevent short-cycling and provide defrost energy during cold weather.
  Solid Fuel Boilers: Wood or pellet boilers generate heat in bursts; a large buffer tank absorbs this energy and releases it gradually to the system.
  Solar Thermal Systems: Stores solar energy collected during the day for use at night.
  Complex Zoned Systems: Buildings with many individually controlled zones benefit from the decoupling a buffer tank provides.
  Domestic Hot Water Production: As an indirect water heater with an internal coil.

Conclusion

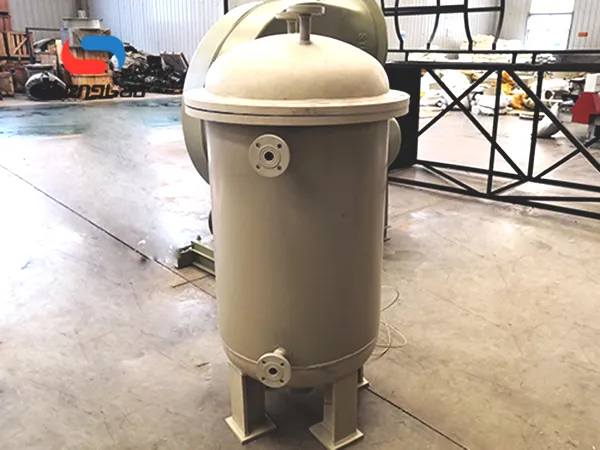

The Polypropylene buffer tank is far more than a simple water container. It is a sophisticated, system-critical component engineered to enhance performance, protect valuable heating and cooling equipment, and ensure long-term reliability. Its material advantages—foremost its complete immunity to corrosion—position it as a modern solution that addresses the weaknesses of traditional materials. By adding thermal mass and decoupling production from consumption, the PP buffer tank enables modern, high-efficiency, low-temperature hydronic systems to operate at their theoretical peak. For any system designer or installer focused on delivering efficiency, durability, and performance, understanding and specifying the correct PP buffer tank is not just an option; it is a fundamental principle of good system design. Its role is indispensable in the push towards more sustainable, resilient, and intelligent building climate control.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.
