In the demanding landscape of industrial chemical processing, the selection of equipment for the storage and handling of aggressive media is a critical decision that impacts operational safety, product purity, maintenance costs, and long-term viability. Among the various options, Polypropylene Homopolymer (PPH) acid washing storage tanks have emerged as a superior solution for a wide range of applications, particularly where strong acids, corrosive chemicals, and high-purity requirements are paramount. This document provides a detailed, in-depth exploration of PPH acid washing storage tanks, covering their material properties, manufacturing process, design advantages, application specifics, and comparative benefits over traditional materials.

1. Understanding the Core Material: Polypropylene Homopolymer (PPH)

The exceptional performance of these tanks is fundamentally derived from their construction material: Polypropylene Homopolymer (PPH).

  Chemical Structure: PPH is a thermoplastic polymer made from the polymerization of propylene monomers. Its "homopolymer" designation indicates that it consists purely of propylene monomers, resulting in a highly regular molecular structure. This regularity grants it excellent chemical resistance, particularly to a wide range of acids and alkalis.
  Key Properties:
      Superior Chemical Resistance: PPH is renowned for its outstanding resistance to aggressive chemicals. It performs exceptionally well against concentrated acids (e.g., hydrochloric acid, sulfuric acid, phosphoric acid, chromic acid), alkalis, and many organic solvents. This makes it an ideal choice for an acid washing storage tank, where the contained medium is inherently corrosive.
      High-Temperature Performance: Standard PPH can typically handle temperatures up to 80-90°C (176-194°F), while heat-stabilized grades can extend this range even further, accommodating hot processes.
      Mechanical Strength: PPH offers good mechanical strength and stiffness, which is crucial for maintaining structural integrity under load.
      Lightweight: Compared to metals or fiberglass, PPH tanks are significantly lighter, simplifying transportation, handling, and installation.
      Non-Corrosive and Non-Conductive: Unlike metals, PPH does not rust, galvanically corrode, or conduct electricity, eliminating a whole class of failure modes and safety hazards.

2. The Manufacturing Process: PP Helical Extrusion Welding (Spiral Winding)

PPH tanks are primarily manufactured using an advanced automated process known as helical extrusion welding or spiral winding. This process is key to their robustness and leak-free performance.

1.  Material Preparation: PPH raw material in granule form is fed into an extruder.
2.  Extrusion: The extruder heats the granules to a molten state and forces them through a die.
3.  Spiral Winding: The molten PPH ribbon is continuously wound onto a rotating mandrel, the shape of which defines the tank's diameter. The machine's movement ensures each new coil fuses molecularly with the one beneath it.
4.  In-Situ Welding: This is not merely adhesion; the heat and pressure create a fully homogeneous, seamless weld throughout the entire structure. There are no weak points like seams or joints found in welded metal tanks or layered fiberglass tanks.
5.  Consolidation: Pressure rollers consolidate the wound coil, ensuring a uniform wall thickness and eliminating voids or air pockets.
6.  Fabrication of Ends: The tank ends (tops and bottoms) are typically thermoformed separately and then fused to the cylindrical body using the same extrusion welding technique, ensuring the entire vessel is a monolithic structure.

The result is a seamless, one-piece cylindrical body with consistent mechanical properties and unparalleled structural integrity.

3. Design Features and Configurations of Acid Washing Storage Tanks

A standard PPH acid washing storage tank is designed with specific features to ensure safe and efficient operation:

  Seamless Construction: As described, the absence of seams is the first line of defense against leakage.
  Wall Thickness: Walls are manufactured with uniform and customizable thickness, often reinforced near the bottom to handle hydraulic pressure.
  Integral Reinforcements: For larger tanks, external reinforcement rings (also made of PPH) are extrusion-welded around the circumference to provide additional structural support against hoop stress.
  Fittings and Connections: All nozzles, manways, sight glasses, and level gauge attachments are not merely bolted on; they are fused onto the tank wall using extrusion welding, creating a permanent, leak-proof connection that is as strong as the tank itself.
  Options and Accessories:
      Agitation Ports: For mounting mixers or agitators to keep contents homogeneous.
      Liquid-Level Indicators: Magnetic float gauges or sight tubes for accurate level monitoring.
      Venting: Breathable filters or vent scrubbers to manage pressure and prevent contamination.
      Lining Options: While inherently chemical-resistant, some tanks may have an internal smooth surface or be lined with pure PP for an extra layer of protection against certain solvents or for ultra-high purity applications.

4. Advantages Over Alternative Materials

The choice of a PPH tank often comes after comparing it to traditional materials like stainless steel, fiberglass reinforced plastic (FRP), and polyethylene (PE).

  vs. Stainless Steel: While stainless steel (e.g., 316L) is strong, it is susceptible to pitting and stress corrosion cracking from chlorides (e.g., in hydrochloric acid). It requires passivation and is far heavier and more expensive. PPH is immune to these forms of corrosion.
  vs. Fiberglass (FRP): FRP tanks can suffer from delamination, osmotic blistering, and degradation from UV exposure if not properly manufactured. The quality is highly dependent on the skill of the fabricator. PPH tanks offer more consistent, automated production and are not prone to these issues.
  vs. Polyethylene (PE): Linear PE tanks are common but are often rotationally molded, which can result in variable wall thickness. PPH generally offers higher temperature resistance and better mechanical strength at elevated temperatures compared to standard PE.

5. Primary Applications and Industries

The PPH acid washing storage tank is ubiquitous across industries where chemical resistance is non-negotiable:

  Electroplating and Metal Surface Treatment: For storing and supplying concentrated acids (sulfuric, hydrochloric, chromic) used in pickling, etching, and electroplating baths.
  Chemical Synthesis and Manufacturing: As reaction vessels, holding tanks for intermediates, or product storage for a vast array of corrosive chemicals.
  Wastewater Treatment: Storing acids and alkalis used for pH adjustment, chemical precipitation, and neutralization processes.
  Pharmaceutical and Electronics: Where ultra-pure grades of acids are required for etching and cleaning silicon wafers or manufacturing active pharmaceutical ingredients (APIs). The non-contaminating nature of PPH is crucial.
  Acid Washing Operations: The namesake application, where equipment or materials are cleaned with acid solutions, requires robust and reliable storage.

6. Installation, Maintenance, and Safety Considerations

  Installation: Tanks must be placed on a perfectly level, continuous foundation, typically a concrete pad or sand bed designed to support the full weight of the tank when full. Proper support prevents unsightly deformation and stress.
  Maintenance: Maintenance is minimal. Routine inspections should check for external damage, ensure fittings are tight, and verify the integrity of accessories. The smooth internal surface prevents buildup and is easy to clean if necessary.
  Safety: PPH is a non-conductive and non-combustible material (it will melt but not support a flame). Operators must always be aware of the chemical being stored and refer to its Material Safety Data Sheet (MSDS) for specific hazards related to the contents, not the container.

Conclusion

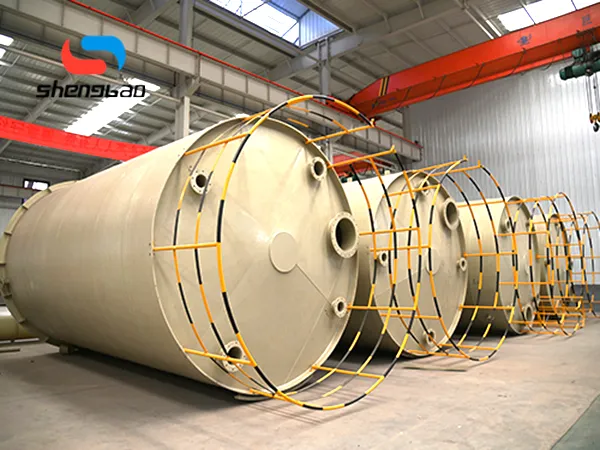

The PPH acid washing storage tank represents a fusion of advanced polymer science and precision manufacturing. Its construction from Polypropylene Homopolymer via the helical extrusion welding process yields a vessel that is seamless, exceptionally corrosion-resistant, structurally sound, and maintenance-free. For industries grappling with the challenges of handling aggressive acids and corrosive chemicals, these tanks provide a reliable, cost-effective, and long-lasting storage solution that ensures operational integrity, safety, and product quality. The investment in a PPH system is an investment in decades of trouble-free service, making it an indispensable asset in modern industrial infrastructure.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.

These tanks feature excellent thermal stability, superior chemical resistance, non-toxicity, energy efficiency, environmental friendliness, and recyclability. Their service life is 3-4 times longer than that of conventional storage tanks.

They are widely used in industries such as new energy, chemical processing, biopharmaceuticals, metal smelting, water treatment, and food production.
