Abstract
The safe, efficient, and long-term storage of aggressive chemicals is a cornerstone of modern industrial processes. Among these chemicals, hydrobromic acid (HBr), particularly in its aqueous form, presents significant challenges due to its highly corrosive and fuming nature. The selection of an appropriate storage solution is not merely a matter of convenience but a critical imperative for operational safety, environmental protection, and economic viability. This document provides a detailed technical introduction to the use of horizontal storage tanks constructed from polypropylene copolymer (PPH) specifically designed for the containment of hydrobromic acid. It delves into the material properties, manufacturing process, design advantages, and operational considerations that make PPH horizontal tanks the superior choice for this demanding application, far surpassing traditional materials like metals, standard plastics, or fiberglass reinforced plastic (FRP) in many scenarios.

1. Introduction to Hydrobromic Acid and its Storage Challenges

Hydrobromic acid is a strong acid formed by dissolving diatomic bromine gas (Br₂) in water. It is a clear, colorless-to-pale yellow liquid, renowned for its reactivity and corrosive properties. It finds extensive use in various industries, including:
  Pharmaceuticals: As a catalyst and reagent in the synthesis of numerous drugs and intermediates.
  Chemicals & Petrochemicals: In the production of inorganic bromides (e.g., zinc bromide, calcium bromide for drilling fluids), as an alkylation catalyst, and in organic synthesis.
  Electronics: For etching and engraving in the semiconductor manufacturing process.

The storage of hydrobromic acid, typically at concentrations of 48% or 62%, is fraught with challenges:
  High Corrosivity: It aggressively attacks most common metals like carbon steel and stainless steel (including 304 and 316 grades), leading to rapid tank degradation, product contamination, and catastrophic failure.
  Fuming: Concentrated solutions release hydrogen bromide gas, which is corrosive, toxic, and can form explosive mixtures with air. This necessitates containment and often, vapor management systems.
  Oxidizing Nature: Its oxidizing potential can degrade certain organic materials and polymers not specifically designed to withstand it.
  Environmental and Safety Risks: Any leak or spill poses severe risks to personnel, infrastructure, and the environment, demanding a leak-proof containment strategy.

Traditional materials often fall short. Rubber-lined steel requires meticulous installation and is prone to damage. Certain plastics like PVC can become brittle. FRP can suffer from hidden degradation via blistering and permeation. This is where the unique properties of Polypropylene Copolymer (PPH) come to the fore.

2. The Superior Material: Polypropylene Copolymer (PPH)

Polypropylene Homopolymer (PP-H) is a common thermoplastic, but for high-performance industrial tanks, the copolymer variant (PPH) is almost exclusively used. PPH incorporates a small percentage of ethylene monomer into the polymer chain. This modification significantly enhances the material's properties:
  Excellent Chemical Resistance: PPH exhibits outstanding resistance to a wide range of acids, alkalis, and saline solutions. It is virtually impervious to hydrobromic acid at standard storage concentrations and temperatures, preventing corrosion, pitting, and stress cracking.
  High Impact Strength and Toughness: The copolymer structure provides superior low-temperature impact strength and toughness compared to homopolymer, reducing the risk of brittle fracture from mechanical shock or during handling and installation.
  Low Permeability: PPH has very low permeability to liquids and gases, minimizing product loss and preventing the emission of corrosive fumes into the surrounding atmosphere. This property is crucial for both safety and maintaining product purity.
  Thermal Stability: PPH tanks can typically operate continuously within a temperature range of approximately -20°C to +90°C (-4°F to +194°F), comfortably covering the standard storage conditions for hydrobromic acid.

3. The Manufacturing Process: Polypropylene Extrusion Welding

The integrity of a PPH horizontal tank is fundamentally determined by its manufacturing technique. Unlike rotational molding or blow molding, industrial-grade tanks are constructed using the extrusion welding method. This process involves:
1.  Sheet Production: PPH raw material is extruded into large, thick sheets of consistent thickness and quality.
2.  CNC Cutting: Computer Numerical Control (CNC) machines are used to cut these sheets into precisely sized components for the tank's shell, heads (end caps), and fittings.
3.  Panel Rolling: The flat sheets for the cylindrical shell are heated and rolled to the exact required diameter.
4.  Extrusion Welding: This is the core of the process. A specialized welding machine feeds PPH welding rod into a heated chamber, where it is plasticized. The welder then extrudes this molten material into the prepared joint between two components, simultaneously heating the substrate surfaces. The molten weld material and the substrate fuse together as they cool, creating a seam whose strength often exceeds 90% of the base material's strength. All welds are double-welded (first a primary weld, then a cover weld) for absolute integrity.
5.  Quality Assurance: Every weld is meticulously inspected, often using non-destructive testing methods like high-voltage spark testing to ensure they are 100% free of pinholes and defects.

This construction method allows for the creation of large-volume, custom-designed tanks with exceptional structural integrity and guaranteed leak-proof performance.

4. Advantages of the Horizontal Tank Configuration

While vertical tanks are common, the horizontal configuration offers distinct advantages for many applications:
  Low Profile and Stability: Horizontal tanks have a lower center of gravity, making them inherently more stable and less susceptible to wind loads or seismic activity. This reduces the need for extensive and expensive external support structures or anchoring systems.
  Ease of Integration: Their shape is ideal for fitting into designated pipe racks, bunds (secondary containment areas), or underneath processing equipment, facilitating a more compact plant layout.
  Simplified Maintenance and Inspection: The entire top surface is accessible for inspection, cleaning, and maintenance of internal components like level gauges or mixers.
  Efficient Emptying: When placed on slight supports, the horizontal orientation allows for near-complete drainage through a bottom outlet, minimizing product residue.

5. Key Design Features of a PPH Horizontal HBr Storage Tank

A well-engineered PPH tank for hydrobromic acid will include several critical features:
  Structural Design: The tank is designed to withstand both the hydrostatic pressure of the liquid and any minor vacuum conditions. The horizontal design often incorporates external reinforcing ribs or rings (gussets) fabricated from PPH, which provide immense structural support without the risk of corrosion associated with metal straps.
  Integrated Bund (Double-Wall Design): For maximum environmental safety, a common configuration is a double-wall tank. The primary inner tank is encased within an outer PPH shell. The interstitial space between the walls acts as a permanent, integrated secondary containment bund, capable of holding 110% of the primary tank's volume in case of a leak.
  Fittings and Accessories: All tank openings (for manways, fill, discharge, vent, level indication, and sampling) are manufactured from PPH and are extrusion-welded to the tank body to ensure a monolithic, leak-proof structure. Common accessories include:
      Ventilation System: A pressure/vacuum relief valve with a hydrobromic acid vapor scrubber or a molecular sieve breather filter to manage fuming and prevent atmospheric moisture ingress.
      Level Monitoring: Magnetic float level gauges or ultrasonic sensors.
      Mixer Port: For installing an top-mounted mixer to maintain solution homogeneity if required.

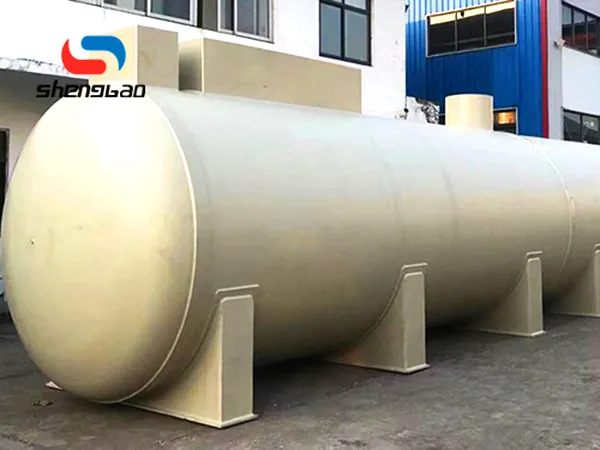

  Support System: Tanks are supplied with integrated support saddles, also made from PPH, which are contoured to the tank's diameter and welded directly to the body, ensuring even load distribution.

6. Installation, Operation, and Maintenance

  Installation: The tank must be placed on a perfectly level and continuous foundation, typically a concrete pad rated for the load. The integrated saddles provide the support area.
  Operation: Standard operating procedures involve checking the ventilation system, monitoring fluid levels, and ensuring all valves are in the correct position before and after transfer operations.
  Maintenance: The chemical resistance of PPH means minimal maintenance is required. Routine inspections should focus on external visual checks of the tank and its fittings, and ensuring the secondary containment area remains clean and dry.

Conclusion

The storage of a demanding chemical like hydrobromic acid requires an engineering solution that prioritizes safety, longevity, and total cost of ownership. A horizontal storage tank constructed from polypropylene copolymer (PPH) via advanced extrusion welding technology represents the pinnacle of such a solution. Its unparalleled chemical resistance, monolithic leak-proof construction, and the inherent safety advantages of the horizontal configuration—especially when combined with an integrated double-wall design—make it an indispensable asset for any industry handling this potent acid. By choosing a PPH horizontal tank, operators invest in a robust, reliable, and fundamentally safe containment system that mitigates risk, protects the environment, and ensures operational continuity for decades.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.

These tanks feature excellent thermal stability, superior chemical resistance, non-toxicity, energy efficiency, environmental friendliness, and recyclability. Their service life is 3-4 times longer than that of conventional storage tanks.

They are widely used in industries such as new energy, chemical processing, biopharmaceuticals, metal smelting, water treatment, and food production.
