The horizontal water tank is a ubiquitous yet critically important piece of infrastructure that serves as a cornerstone for water storage across a vast spectrum of applications. From supporting industrial processes and agricultural irrigation to providing essential fire suppression reserves and potable water storage for remote communities, these cylindrical vessels are engineered for reliability, efficiency, and durability. This 五千字介绍 (five-thousand-word introduction) delves into the design, materials, applications, advantages, limitations, installation, and maintenance considerations of horizontal water tanks, offering a detailed overview of this essential technology.

1. Fundamental Design and Anatomy

A horizontal water tank is characterized by its cylindrical shape oriented with its long axis parallel to the ground. This fundamental design is not arbitrary; it is a result of careful engineering to manage internal pressures and external forces efficiently. The primary components of a standard horizontal tank include:

  Shell: The main cylindrical body of the tank. It is constructed from rolled steel plates (or other materials) welded together. The thickness of the shell is meticulously calculated based on the tank's capacity, the specific gravity of the liquid it will hold, and any internal or external pressures it must withstand.
  Heads: These are the ends of the tank. They are typically dished (concave) in shape, which provides significant structural strength. The curved design of dished heads allows them to withstand internal pressure far more effectively than flat ends, distributing stress evenly and preventing points of weakness.
  Supports: Horizontal tanks are not free-standing; they require robust support structures. The most common types are:

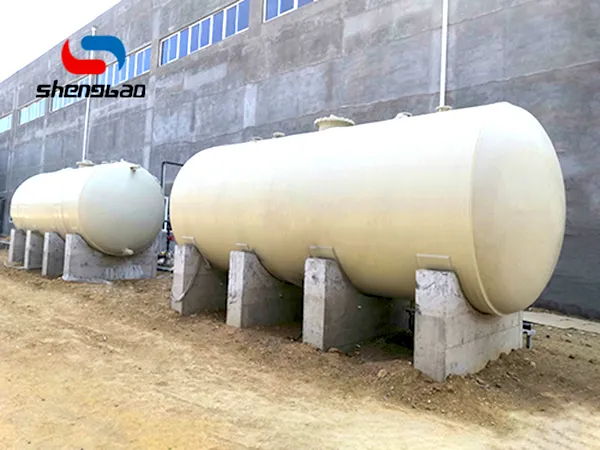

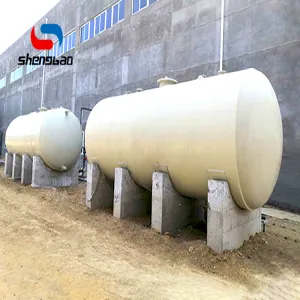

      Saddles: Curved supports that cradle the tank shell, typically made of concrete or steel. They are designed to match the tank's curvature to distribute the weight evenly and prevent point loading, which can deform the shell. Saddles are often placed at points reinforced by stiffening rings.
      Cradles: A full base framework that provides support along a greater length of the tank.
  Openings and Fittings: A network of openings is integrated into the tank design. These include manways (for human entry during inspection and cleaning), inlet and outlet nozzles, overflow pipes, vent pipes (to manage air pressure and prevent vacuum formation), drain valves, and access points for level indicators and sensors.

2. Common Materials of Construction

The choice of material is paramount and depends almost entirely on the tank's intended contents and the environmental conditions it will face.

  Carbon Steel: The workhorse of the industrial tank world. Carbon steel is prized for its high tensile strength, durability, and cost-effectiveness for large-scale storage. It is almost always coated internally and externally to prevent corrosion. Internal linings can include epoxy, phenolic, or zinc coatings, while exteriors are typically painted with weather-resistant industrial paints.
  Stainless Steel: Used for applications requiring high purity and superior corrosion resistance. Common grades include 304 and 316L stainless steel, with the latter offering better resistance to chlorides and acidic environments. Stainless steel tanks are common in the food and beverage, pharmaceutical, and chemical industries where contamination must be avoided.
  Fiberglass Reinforced Plastic (FRP): These tanks are lightweight, highly corrosion-resistant, and require minimal maintenance. They are a excellent choice for storing aggressive chemicals, fertilizers, and in situations where the weight of a steel tank is prohibitive.
  Polyethylene: Rotomolded plastic tanks are a lightweight and cost-effective option for smaller capacities and less demanding applications. They are corrosion-proof and often used for potable water, agricultural chemicals, and other non-industrial uses.

3. Primary Applications and Use Cases

The versatility of horizontal water tanks is demonstrated by their wide range of applications:

  Industrial Water Storage: They are used to store process water, cooling water, and feedwater for boilers in manufacturing plants, power generation facilities, and refineries.
  Fire Protection: Many commercial and industrial buildings are mandated by code to have a dedicated water storage reserve for their fire sprinkler and standpipe systems. Horizontal tanks are often chosen for this role due to their reliability and large capacity.
  Potable Water Systems: In remote areas, municipalities, or large facilities, these tanks serve as storage reservoirs within the water distribution system, helping to manage demand peaks and provide a buffer during main supply interruptions.
  Agriculture and Irrigation: They store water for crop irrigation, livestock watering, and for holding liquid fertilizers or pesticides.
  Chemical and Liquid Storage: With appropriate material choice and lining, they safely store a vast array of non-potable liquids, from fuels and oils to industrial chemicals and wastewater.

4. Advantages and Disadvantages

Advantages:
  Space Efficiency: Their low-profile design has a smaller vertical footprint than a vertical tank of equivalent volume, making them ideal for sites with height restrictions or where they need to be installed inside buildings or under eaves.
  Ease of Maintenance and Inspection: The larger surface area on top, combined with accessible manways, makes internal inspection, cleaning, and repair more straightforward compared to taller, narrower tanks.
  Stable Foundation Requirements: The weight is distributed over a larger area, which can sometimes simplify foundation design compared to the concentrated load of a vertical tank.
  Efficient Truck Transport: Large horizontal tanks can often be transported on their side via truck more easily than extremely tall vertical tanks, which may require special permits and routes.

Disadvantages:
  Greater Footprint: They require more ground space than a vertical tank holding the same volume of liquid.
  Potential for Sedimentation: Stagnant zones with low flow can develop more readily in the bottom of a long horizontal tank, potentially leading to sediment buildup if not designed with proper drainage.
  Pressure Limitations: Operating pressure is primarily limited by the geometry of the horizontal design and the support structure. For very high-pressure applications, spherical or vertical pressure vessels are often preferred.

5. Installation, Foundation, and Maintenance

Proper installation is critical to the long-term integrity of the tank.

  Foundation: A horizontal tank must be placed on a perfectly level and engineered foundation, typically a concrete pad or a series of concrete piers. An uneven foundation will create uneven stresses in the shell, leading to deformation and potential failure.
  Alignment and Anchoring: The tank must be correctly aligned on its saddles. It is also essential to anchor the tank to the foundation to prevent movement from external forces like wind or earthquakes.
  Maintenance: A regular maintenance schedule is non-negotiable. This includes:
      External Inspections: Checking for signs of corrosion, coating degradation, and structural integrity of supports and welds.
      Internal Inspections: Periodic emptying and entry (following strict confined space entry protocols) to inspect the interior for corrosion, lining failure, and sediment buildup.
      Component Checks: Ensuring all valves, level gauges, and overflow systems are functioning correctly.

In conclusion, the horizontal water tank is a masterpiece of practical engineering. Its design represents a perfect balance between capacity, structural integrity, and functional utility. While seemingly simple, its construction and implementation involve a deep understanding of materials science, structural mechanics, and fluid dynamics.
