The efficient and reliable storage of industrial materials is a cornerstone of modern manufacturing and processing operations. Among these materials, quartz sand holds a position of critical importance due to its extensive use in sectors such as water filtration, glass production, foundry casting, construction, and hydraulic fracturing (fracking). The integrity of this raw material throughout the storage phase is paramount to the quality of the final product and the efficiency of the downstream process. This is where the choice of storage equipment becomes crucial. The PPH (Polypropylene Homopolymer) Horizontal Quartz Sand Storage Tank emerges as a superior engineering solution, specifically designed to meet the unique challenges of storing abrasive, hygroscopic, and quality-sensitive materials like quartz sand.

This article provides an in-depth exploration of the PPH horizontal quartz sand storage tank, covering its fundamental construction, the material science behind PPH, its key advantages, design considerations, and its critical role in modern industrial applications.

1. Fundamental Design and Construction

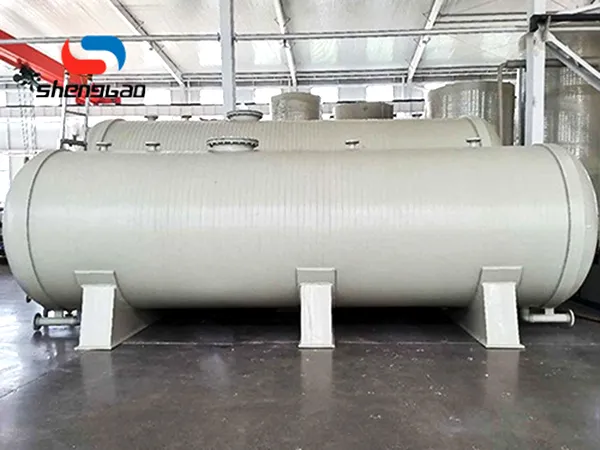

A PPH horizontal quartz sand storage tank is a large-capacity vessel engineered for the bulk storage of dry, free-flowing granular materials. Unlike vertical silos, the horizontal orientation offers distinct advantages in certain layout configurations and for specific discharge requirements.

The tank is typically cylindrical in cross-section with dished or conical ends. Its construction is not based on traditional welding of pre-fabricated sheets. Instead, it utilizes a highly advanced manufacturing process known as PPH winding technology. This process involves:

  Extrusion: PPH resin, in the form of granules, is fed into a specialized extrusion machine where it is heated to a precise temperature until it becomes molten.
  Winding: The molten PPH is extruded through a die to form a continuous, molten tape or ribbon. This tape is immediately and systematically wound onto a massive, rotating mandrel that defines the internal shape and diameter of the tank.
  Fusion: As the hot tape is wound layer upon layer, the heat from each new tape fuses it completely with the previous layer. This creates a seamless, monolithic structure without any welds, stitches, or joints along the body of the tank. This fusion is the key to the tank's incredible strength and leak-proof integrity.
  Consolidation: The winding process applies significant pressure, ensuring the elimination of air pockets and creating a uniform, high-density wall structure.

The tank is equipped with standardized accessories, including:
  Manways: For safe human entry for inspection and maintenance.
  Level Indicators: Mechanical, ultrasonic, or radar-based systems to monitor sand volume.
  Venting Systems: To prevent pressure build-up or vacuum formation during filling and discharge.
  Discharge Outlets: Typically with flanges designed for connection to rotary valves, screw conveyors, or other pneumatic or mechanical conveying systems. The bottom design can be flat or sloped to facilitate complete material evacuation.
  Support Structures: Custom-engineered saddles or cradles made from painted carbon steel or galvanized steel to provide stable and secure support.

2. The Material Science: Why Polypropylene Homopolymer (PPH)?

The selection of PPH as the primary construction material is not arbitrary; it is a deliberate choice based on its exceptional chemical and physical properties, which align perfectly with the requirements for quartz sand storage.

  Superior Abrasion Resistance: Quartz sand is highly abrasive. During loading, storage, and discharge, the constant friction and impact of the sand particles can rapidly wear down inferior materials like carbon steel. PPH has an exceptionally low coefficient of friction and a naturally slick surface. This allows the sand to slide against the tank walls with minimal wear, significantly extending the service life of the vessel compared to metal alternatives, which can corrode and thin out.
  Exceptional Corrosion Resistance: PPH is inherently inert to a vast range of chemicals. It is completely immune to the corrosion that plagues metal tanks when exposed to moisture. Even if the quartz sand contains traces of moisture or is stored in a humid environment, the PPH tank will not rust, pit, or degrade. This eliminates the risk of sand contamination with rust particles, a critical factor in applications like water filtration or glassmaking where purity is non-negotiable.
  High Purity and Hygiene: PPH is a food-grade material (meets FDA and EU standards for food contact). It does not leach any odors, tastes, or contaminants into the stored material. This ensures the quartz sand remains pure and uncontaminated, preserving its intrinsic properties and value.
  Impact Strength and Durability: Despite not being a metal, PPH tanks manufactured via the winding process exhibit remarkable structural strength and toughness. They can withstand the significant static and dynamic loads imposed by tons of stored material.
  Lightweight Nature: PPH has a density much lower than steel. This makes the tanks easier to transport and handle during installation, often requiring lighter and less expensive foundation and support structures.

3. Key Advantages Over Alternative Storage Solutions

When compared to traditional storage options like welded steel silos or fiberglass tanks, the PPH horizontal quartz sand storage tank offers a compelling set of benefits:

  Leak-Proof and Seamless Construction: The monolithic, seamless body is fundamentally leak-proof. There are no welded seams that can become points of failure due to stress, corrosion, or abrasion.
  Low Maintenance and Long Life: The combination of corrosion and abrasion resistance translates into decades of service with virtually no maintenance required beyond routine inspections. The cost of ownership over the tank's lifespan is significantly lower than that of a painted or lined steel tank, which requires periodic repainting, lining repair, or replacement due to wear.
  Excellent Flow Characteristics: The smooth, non-stick interior surface of PPH prevents material bridging, rat-holing, and clogging. This promotes first-in-first-out (FIFO) flow and ensures complete, reliable discharge of the entire contents, eliminating dead zones and leftover material.
  Thermal Insulation: PPH has lower thermal conductivity than metal. This provides a degree of natural insulation, helping to protect the stored sand from external temperature fluctuations and preventing moisture migration and condensation inside the tank, which can lead to caking.

4. Design and Customization Considerations

These tanks are not one-size-fits-all products. They are engineered to order based on specific client requirements. Key design parameters include:
  Capacity: Sizes can range from a few cubic meters to very large volumes exceeding 100 cubic meters.
  Pressure Rating: Designed to operate under specific internal and external pressure conditions, including full vacuum if required.
  Accessory Integration: The placement and type of inlets, outlets, manways, and sensors are customized to fit the plant's existing layout and conveying system.
  Environmental Factors: The design must account for seismic loads, wind loads, and snow loads specific to the installation site.

Conclusion

The PPH horizontal quartz sand storage tank represents a fusion of advanced material science and innovative manufacturing technology. It is a purpose-built solution that directly addresses the challenges of storing abrasive, sensitive, and valuable granular materials. Its seamless construction, unparalleled resistance to abrasion and corrosion, and ability to safeguard material purity make it an indispensable asset for industries where product quality and operational reliability are paramount. By opting for this technology, operations managers and engineers invest not just in a container, but in long-term operational efficiency, reduced maintenance costs, and the guaranteed integrity of their critical raw material—quartz sand. It is a definitive example of how modern engineering polymers are revolutionizing industrial infrastructure.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.

These tanks feature excellent thermal stability, superior chemical resistance, non-toxicity, energy efficiency, environmental friendliness, and recyclability. Their service life is 3-4 times longer than that of conventional storage tanks.

They are widely used in industries such as new energy, chemical processing, biopharmaceuticals, metal smelting, water treatment, and food production.
