In the vast landscape of industrial processing, particularly within the chemical, pharmaceutical, electroplating, wastewater treatment, and metallurgical sectors, the safe and efficient storage of corrosive substances is not just a requirement but a fundamental pillar of operational integrity. Among the various solutions available, the PPH Horizontal Acid/Alkali Storage Tank stands out as a premier choice for handling a wide spectrum of aggressive media. This article delves into the intricacies of these tanks, exploring their manufacturing process, material properties, design advantages, applications, and installation considerations, providing a thorough understanding of their critical role in modern industry.

1. Unveiling PPH: The Material at the Heart

The acronym PPH stands for Polypropylene Homopolymer. It is a thermoplastic polymer known for its exceptional chemical resistance, high mechanical strength, and excellent thermal stability within a specific range. Unlike its copolymer counterparts, the homopolymer structure of PPH offers a higher crystalline content, which directly translates to superior resistance to stress cracking and higher rigidity. This makes it an ideal material for constructing vessels that must withstand the relentless attack of acids, alkalis, and other corrosive chemicals without degrading, leaking, or contaminating the stored contents.

Key properties of PPH material include:
  Outstanding Chemical Resistance: It is highly inert and resistant to a wide range of corrosive substances, including concentrated acids (e.g., hydrochloric acid, sulfuric acid, nitric acid), alkalis (e.g., sodium hydroxide, potassium hydroxide), and many organic solvents.
  High Mechanical Strength and Stiffness: PPH has a high tensile strength and modulus of elasticity, allowing for the construction of large-volume tanks that maintain their structural form under load.
  Excellent Impact Resistance: Even at lower temperatures, PPH maintains good toughness, reducing the risk of damage from accidental impacts.
  High-Temperature Performance: PPH tanks can typically operate continuously at temperatures up to 80-90°C (176-194°F) and can handle higher temperatures for short periods, making them suitable for many heated processes.
  Hygienic and Non-Toxic: The material is FDA-compliant for many applications, making it suitable for storing ingredients in the pharmaceutical and food industries. Its smooth, non-porous surface prevents bacterial growth and allows for easy cleaning.
  Long Service Life: When selected and installed correctly for the application, PPH tanks offer a significantly longer lifespan than metallic tanks prone to corrosion, resulting in a lower total cost of ownership.

2. The Manufacturing Process: Integral Scroll Welding

The true strength of a PPH horizontal tank lies not just in the raw material but in the advanced manufacturing technique used to form it: integral scroll welding (also known as coiled extrusion welding).

This process involves feeding PPH raw material in a granular form into a specialized plastic welding machine. The machine heats and plasticizes the granules, extruding them through a welding head in the form of a molten weld bead. This bead is then meticulously coiled and fused onto the surface of a rotating mandrel or onto previously laid welds. The welding head moves laterally with each rotation, building up the tank wall layer by layer in a continuous spiral.

The advantages of this scroll welding technique are profound:
  Monolithic, Seamless Construction: The tank body is formed from a single, continuous piece of material with no seams. This eliminates the weak points inherent in tanks constructed by gluing or butt-welding smaller sheets together, drastically reducing the potential for leaks.
  Uniform Wall Thickness and Consistency: The automated process allows for precise control over the wall thickness, ensuring consistent mechanical properties throughout the entire structure. Thickness can be increased to meet specific pressure and volume requirements.
  Exceptional Structural Integrity: The spiral-welded design creates a vessel of immense strength, capable of bearing heavy loads, including the weight of the chemical contents itself and external structural stresses.
  Customization: This method allows for a high degree of customization in terms of diameter, length (and therefore volume), and the integration of fittings and nozzles at precisely specified locations.

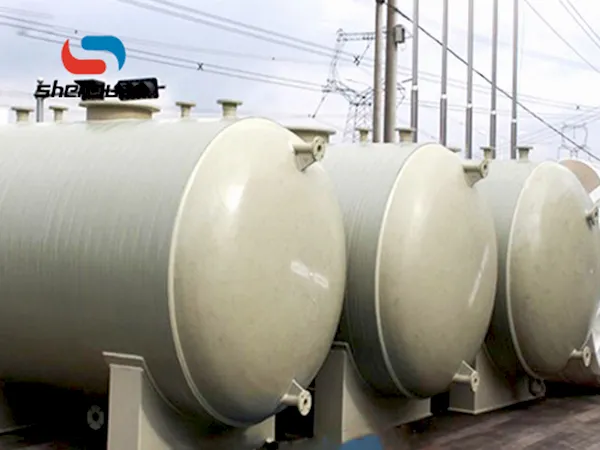

3. Design and Configuration of Horizontal Tanks

The horizontal orientation of these tanks offers distinct advantages for certain applications:
  Low Center of Gravity: Horizontal tanks are inherently more stable than tall, vertical tanks, making them ideal for outdoor installations where wind loading is a concern or in areas with seismic activity.
  Ease of Access and Maintenance: Their profile often allows for easier access to manways, inspection ports, and agitator mounts placed on the top head.
  Efficient Use of Space: In facilities with height restrictions, horizontal tanks can be the optimal solution for large-volume storage.
  Support Systems: Horizontal tanks are typically supported by saddles or cradles, which are often integrally welded to the tank shell during manufacturing. These supports are designed to distribute the load evenly and prevent deformation (ovalization) of the tank shell.

A standard PPH horizontal acid/alkali storage tank will include several key features:
  Tank Body: The main cylindrical section, manufactured via scroll welding.
  Heads/Ends: The domed ends of the tank, which are usually hemispherical or dished (e.g., ASME-style flanged and dished heads) for optimal strength and pressure distribution. These are also scroll-welded to the main body.
  Manway: A large opening with a bolted cover, allowing personnel entry for inspection, cleaning, and maintenance.
  Nozzles and Fittings: Ports of various sizes for inlet, outlet, vent, overflow, level gauge, temperature sensor, and drain connections. These are often reinforced and are supplied with flanges (e.g., PN10/PN16 flanges) for secure piping connections.
  Agitation Ports: For mounting mixers or agitators to keep suspended solids in solution or to ensure uniform temperature and concentration.

4. Applications Across Industries

The versatility of PPH horizontal storage tanks makes them indispensable across a diverse range of industries:
  Chemical Processing: Storage of raw materials, intermediate products, and finished chemicals like acids, alkalis, salts, and oxidizing agents.
  Wastewater Treatment: Used as equalization tanks, neutralization tanks, or storage for chemicals used in the treatment process, such as ferric chloride, lime slurry, or sulfuric acid.
  Electroplating and Metal Finishing: Ideal for storing various plating bath solutions, pickling acids, and alkaline cleaners.
  Pharmaceutical Industry: Storage of ultra-pure water (UPW), process solvents, and other raw ingredients where purity and lack of contamination are paramount.
  Food and Beverage: Handling of citrus juices (acidic), cleaning-in-place (CIP) solutions like caustic soda, and other food-grade additives.
  Pulp and Paper Industry: Storage of bleaching chemicals and other process liquors.

5. Installation, Maintenance, and Safety Considerations

Proper handling is crucial to maximizing the lifespan and performance of these tanks.
  Installation: Tanks must be placed on a firm, level foundation, typically a concrete pad. The supporting saddles must make full contact with the foundation. Piping connections should be properly aligned to avoid imposing stress on the tank nozzles; using flexible connectors is often recommended.
  Environmental Factors: While PPH has good UV resistance, prolonged direct sunlight can cause surface degradation. Outdoor installations often require a protective paint or cladding, or the use of tanks made from UV-stabilized grades of PPH.
  Thermal Expansion: Plastic has a high coefficient of thermal expansion. System design must account for the dimensional changes that occur with temperature fluctuations to avoid damage.
  Maintenance: Routine inspection for surface cracks, signs of stress, and the integrity of fittings is essential. The smooth internal surface is generally easy to clean, but abrasive methods should be avoided.
  Safety: Despite their strength, these are non-pressure vessels for atmospheric storage. They are designed to handle only the hydrostatic pressure of the liquid contents. Over-pressurization or vacuum must be prevented through properly sized venting systems.

Conclusion

The PPH horizontal acid/alkali storage tank represents a sophisticated fusion of advanced material science and manufacturing engineering. Its construction from polypropylene homopolymer via the integral scroll welding process results in a vessel of unparalleled corrosion resistance, structural integrity, and reliability. The horizontal design offers practical advantages in stability, accessibility, and spatial efficiency. As industries continue to prioritize safety, longevity, and total cost of ownership in their operations, the PPH horizontal tank remains a trusted and optimal solution for the challenging task of storing some of the most aggressive substances used in modern manufacturing and processing. Its role is not merely functional but foundational, enabling progress across countless essential sectors.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.
