The safe and efficient storage of hydrochloric acid (HCl), a highly corrosive and fuming mineral acid, presents a significant challenge across numerous industries, including chemical processing, water treatment, metal pickling, and pharmaceutical manufacturing. Selecting the appropriate storage solution is not merely a matter of convenience but a critical decision impacting safety, operational integrity, environmental protection, and long-term economic viability. Among the various materials available, storage tanks constructed from Polypropylene Homopolymer (PPH) have emerged as a premier choice for handling hydrochloric acid across a wide range of concentrations and temperatures. This comprehensive introduction delves into the properties of hydrochloric acid, the characteristics of PPH material, the manufacturing process of these tanks, their key advantages, and essential considerations for their specification and maintenance.

1. Understanding the Challenge: Hydrochloric Acid

Hydrochloric acid, often referred to as muriatic acid in its less pure form, is an aqueous solution of hydrogen chloride gas. It is characterized by its pungent odor, high corrosivity, and acidic nature. Its storage demands a material that can resist its aggressive attack, which rapidly degrades most common metals like steel and stainless steel. The primary challenges associated with storing HCl include:

  Extreme Corrosivity: HCl attacks metallic surfaces, leading to rapid tank failure, product contamination, and hazardous leaks.
  Fuming: Concentrated HCl solutions release hydrogen chloride gas, which can corrode surrounding equipment and is hazardous to breathe. This necessitates containment and often vapor recovery systems.
  Temperature Sensitivity: The rate of corrosion and fuming increases with temperature, making thermal stability a crucial factor in material selection.
  Concentration Dependence: The aggressiveness of HCl varies with its concentration, influencing the choice of construction material.

Given these challenges, non-metallic materials are almost universally preferred. While materials like rubber-lined steel, fiberglass reinforced plastic (FRP), and PVC are used, PPH offers a unique and robust set of advantages.

2. The Material of Choice: Polypropylene Homopolymer (PPH)

Polypropylene Homopolymer is a thermoplastic polymer known for its excellent chemical resistance, particularly to a wide range of acids, alkalis, and solvents. The "Homopolymer" designation indicates it is made primarily from propylene monomer, resulting in a high level of purity and consistency, which translates to superior mechanical and chemical properties compared to copolymers.

The key properties of PPH that make it ideal for HCl service are:

  Exceptional Chemical Resistance: PPH is highly inert to hydrochloric acid at concentrations up to 37% and across a broad temperature range. It does not react with or degrade upon contact with HCl, ensuring the purity of the stored acid and the integrity of the tank itself.
  High Purity: The homopolymer structure ensures no leaching of additives or plasticizers into the stored chemical, which is critical for applications in pharmaceuticals and food processing.
  Good Mechanical Strength: PPH has high tensile strength and stiffness, allowing for the construction of large, structurally sound tanks.
  Lightweight: PPH tanks are significantly lighter than their metallic or FRP counterparts, simplifying transportation, handling, and installation.
  Impact Resistance: They maintain good toughness and durability against physical impact at room temperature.

3. The Manufacturing Process: PPH Welding Technology

The superior performance of a PPH HCl storage tank is not solely due to the raw material but also to the advanced manufacturing technique used: automated centrifugal rotational welding or extrusion welding.

  PPH Sheet Fabrication: The process begins with PPH raw material being formed into large, uniform sheets of specific thicknesses, calculated based on the tank's designed capacity and the specific gravity of HCl.
  Cylinder Formation: These sheets are rolled into a cylindrical shape, which will form the main body (shell) of the tank.
  Automated Welding: This is the most critical step. Specialized automated welding equipment heats the edges of the PPH sheets and then fuses them together under pressure. This creates a seam that is as strong as, or even stronger than, the parent material itself. This homogenous weld is seamless and eliminates the risk of leaks at the joints, a common failure point in hand-welded or bonded tanks.
  Construction of Ends and Fittings: The tank ends (heads) are typically thermoformed as domes. All necessary fittings—manways, inlet/outlet ports, vent connections, level gauge ports—are machined from solid PPH and welded onto the shell using the same extrusion welding process, ensuring a monolithic, leak-proof structure.

This automated fabrication method results in a tank with consistent wall thickness, no internal voids, and unparalleled structural integrity.

4. Key Advantages of PPH Hydrochloric Acid Storage Tanks

The combination of PPH material and automated welding technology confers several distinct advantages:

1.  Unmatched Corrosion Resistance: They provide complete, long-term resistance to hydrochloric acid, eliminating the need for linings, cathodic protection, or frequent repairs associated with metallic tanks.
2.  Long Service Life: A correctly specified and installed PPH tank can have a service life exceeding 15-20 years, even in continuous service, offering an excellent return on investment.
3.  Cost-Effectiveness: While the initial material cost may be higher than some alternatives, the total cost of ownership is lower. There are no maintenance costs for linings, no painting requirements, and their durability prevents costly downtime and emergency replacements.
4.  Hygienic and Non-Contaminating: The smooth, non-porous internal surface prevents scaling, build-up, and bacterial growth. It is easy to clean and ensures the stored acid remains uncontaminated.
5.  Leak-Proof Integrity: The seamless, homogeneously welded construction is fundamentally leak-proof, enhancing safety and environmental protection.
6.  Design Flexibility: PPH tanks can be manufactured in a vast range of sizes, from small 1,000-liter vessels to massive tanks exceeding 100,000 liters. They can be designed for atmospheric storage, pressure vessels (with appropriate reinforcement), and can be outfitted with custom fittings to meet any process requirement.

5. Important Considerations for Specification and Use

To ensure optimal performance and safety, several factors must be considered when implementing a PPH HCl storage tank:

  Temperature: While resistant to HCl, PPH's mechanical properties decline as temperature increases. The maximum continuous service temperature for PPH is typically around 90-100°C (194-212°F). The design must account for the temperature of the stored acid.
  Concentration: Confirm the acid concentration with the tank manufacturer. While PPH handles all standard concentrations, extreme conditions may require review.
  Support and Foundation: Proper tank support is crucial. Horizontal tanks require saddles designed to prevent stress concentration. Vertical tanks require a perfectly flat, level, and structurally sound foundation, often a concrete pad.
  Secondary Containment: Due to the hazardous nature of HCl, regulations often mandate secondary containment. This can be a bund wall (dike) or an integral double-wall tank design, where a second PPH shell encapsulates the primary tank, with a leak detection monitor in the interstitial space.
  Accessories and Ancillaries: The tank is part of a system. Consider materials for ancillary equipment: pipings, valves, and pumps must also be corrosion-resistant, typically from PPH, PVDF, or CPVC. Venting must include a properly sized and resistant breather valve or scrubber to handle fumes.
  Installation and Maintenance: Although lightweight, installation should be performed by qualified personnel. Regular visual inspections of the tank's exterior and its support structure are recommended to ensure long-term reliability.

Conclusion

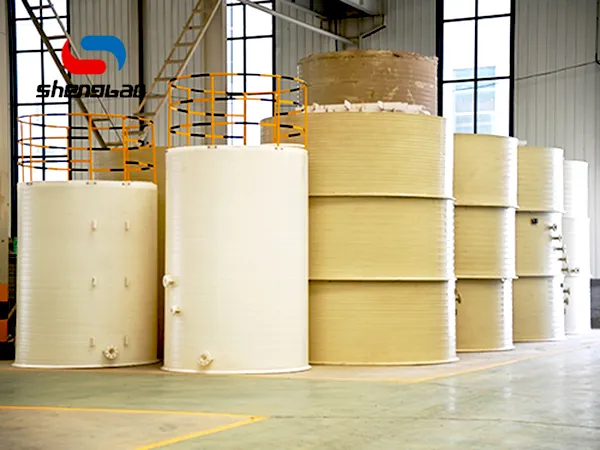

In the demanding application of hydrochloric acid storage, PPH storage tanks represent a synergy of advanced material science and precision engineering. Their exceptional chemical resistance, monolithic construction, and long-term economic benefits make them a superior and reliable solution. By understanding the properties of both the chemical and the material, and by adhering to sound design and installation practices, engineers and operators can leverage PPH technology to create safe, efficient, and durable storage systems that protect both their process and their personnel for decades to come. The investment in a high-quality PPH tank is an investment in operational safety, environmental stewardship, and unwavering process reliability.PPH storage tanks are manufactured using PPH spiral extrusion winding technology. The tank body is constructed with a seamless process, while the tank bottom and top are automatically welded using specialized equipment, ensuring mechanical strength and safety reliability.
